USB type c female panel mount ip67 PCB type circular industrial waterproof plug connectors

Brief Information:

  • Model: USB c female connector
  • Gender: Female
  • Available numbers of contacts: 24pin
  • Termination: PCB
  • Coupling: Thread and bayonet
down load to pdf

USB c receptacle connector technical data：

Model: Type-c female connector
Gender: Female
Contact diameter x number: 24pin
Termination: PCB
Coupling: Thread and bayonet
IP rating: IP67
Transmission rate: 10Gbits/S
Rated voltage: 5V
Rated current: 1.5A
Insulation resistance: ＞500MΩ
Contact resistance: ＜30MΩ
Pullout force: 10N Min
Insert  force: 35N Max
Durability: ≥500 mating cycles
Housing material: Nylon PA66
Contact material: Phosphorus copper
Shield cover: Copper plating nickel
Waterproof o-ring: silicon gel
Shell material: Thermoplastic PA66, flame retardant grade: V-0
Certification: CE RoHs REACH IP67
Suitable cable OD: OD5.5-7.0mm (24-26AWG)
Application: Signal,data

Description about USB C connectors:

Type c/USB C waterproof connector Features:
The USB Type-C interface is a rugged and easy to use interface. Support positive and negative plug, convenient and fast, can
withstand 10,000 times of repeated plug and pull. Support ultra-high rate communication function and power output. The maximum
transmission rate is 10Gbits/S, the maximum output power is 100W, and the maximum current is 5A. 1. Varies types, can achieve male &female conversion docking, independent female, male with cable, etc;
2. Independent design, easy to install &operate;
3. Sheath of cable protect cable outlet;
4. Cable can be customized;
5. Solid connections system can provide the solutions for data transmission in harsh environments;
6. protection level: IP67 Waterproof;
7. More Than 4 PIN USB Connector, USB to RJ11 Connector Similar to Hard Disk;
8.With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.
9.Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.
It has: (1) vertical compatibility (compatibility with old equipment) : based on USB3.1 specification, simple compatibility with USB2.0, low cost conversion;
(2) Horizontal compatibility (compatibility with other protocols) : DP, MHL and Audio signals can be reconfigured to share Interfaces;
(3) Alternate DisplayPort mode supports 4K ultra hd (UHD) and even 8K resolution;
(4) Better electromagnetic interference (EMI) and radio frequency interference (RFI) mitigation characteristics.
More information about USB C connectors may you are concerned:
HS Code: 8538900000
Customzied: Acceptable
MOQ: 1pcs for normal type
Package: One pcs in PE bag
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days

Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced

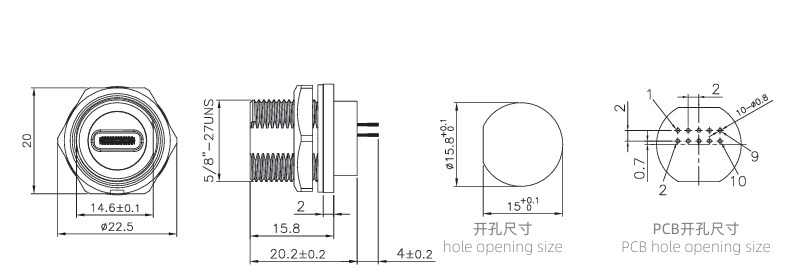

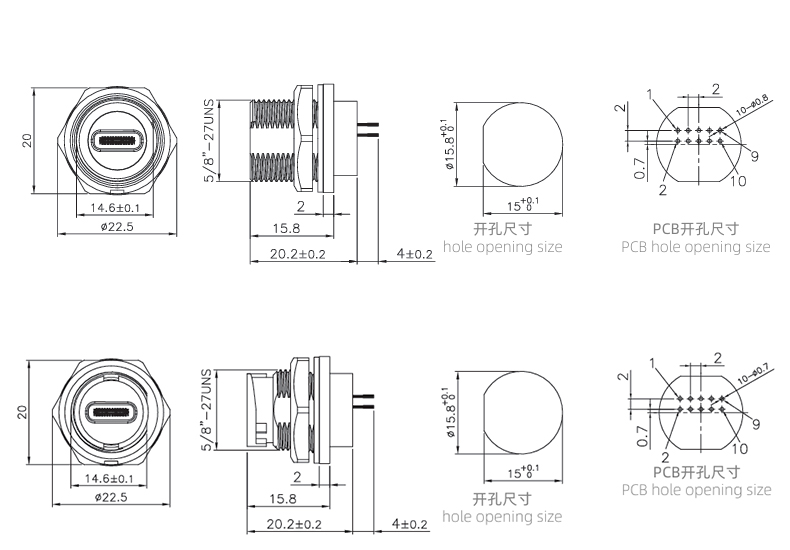

  • Type c female panel mount PCB connector size information:

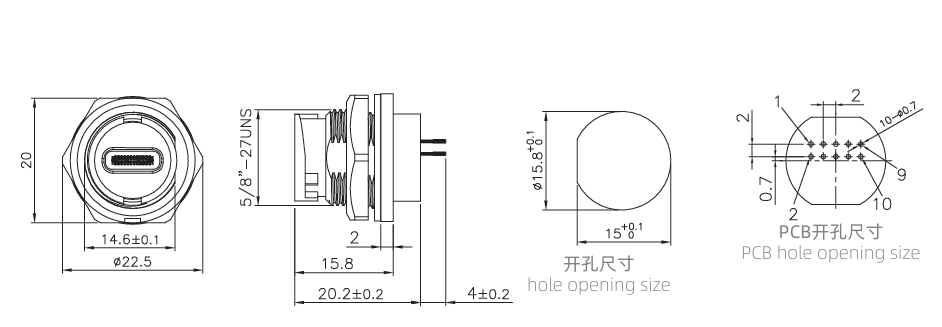

  • Type c female panel mount PCB connector size information:
