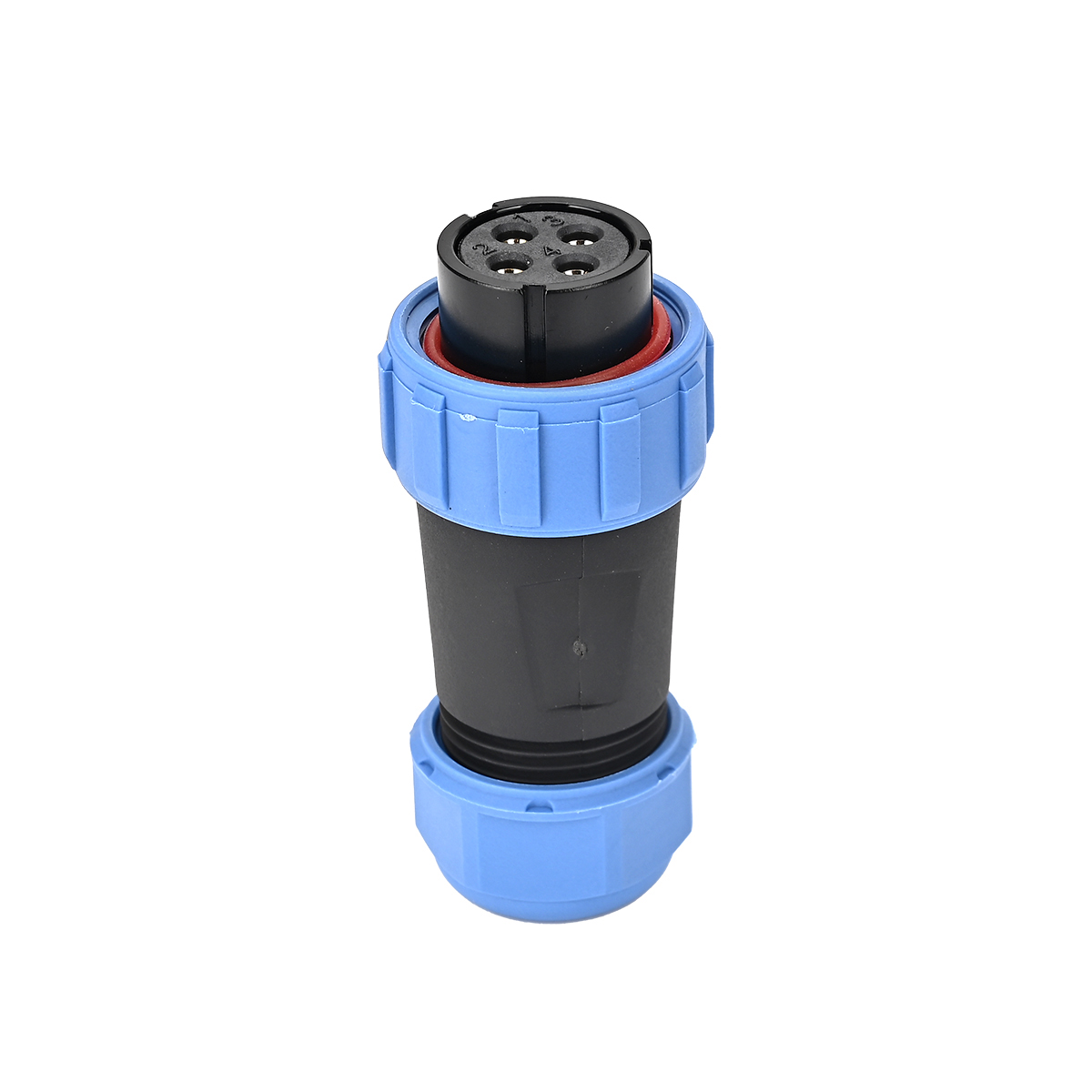

SP1710 female 2-10pin plastic weipu electrical ip67 waterproof plug connectors

Brief Information:

  • Model: SP1710-S
  • Gender: Female
  • Available numbers of contacts: 2pin 2B 3pin 3B 4pin 4B 5pin 7pin 9pin 10pin
  • Termination: Soldering & Crimp
  • Match with: SP1711-P & SP1712-P & SP1713-P
down load to pdf

SP1710 female connector technical date

Contacts poles: 2pin 3pin 4pin 5pin 7pin 9pin 10pin
Contact arrangement:
Rated current: 10A 10A 5A 5A 5A 5A 5A
Rated voltage: 500V 500V 500V 500V 400V 400V 400V
Contact diameter: 1.5MM 1.5MM 1MM 1MM 1MM 1MM 1MM
Contact resistance: ≤2.5mΩ ≤2.5mΩ ≤5mΩ ≤5mΩ ≤5mΩ ≤5mΩ ≤5mΩ
Wire gauge(mm²/AWG): ≤2/14 ≤2/14 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.75/18
Contacts termination: Soldering & Crimp
Connector gender: Female
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PPS
Orientation: Straight 180°
Insert material: PPS
Shell material: PC, PA66
Fire resistance: V-0
Contact material: Brass copper plating
Cable diameter range: 6-10MM
Mechanical operation： ＞500 times
Temperature range: -40°C~+85°C
Coupline: Threaded coupline
Insulation resistance: 2000 MΩ



Description:

The plastic circular waterproof connector SP17 is the ideal choice for many industries with its diverse configurations and excellent performance.

Fremi plastic round waterproof connector SP17, with its rich plug and socket options, as well as the flexible choice of male and female heads, to meet the needs of different operating currents and diverse application scenarios. Available in a variety of configurations from 2 to 10 cores, this connector is capable of carrying up to 15A of operating current, making it ideal for high-current transmission applications. Equipped with a dust-proof cap, its waterproof rating is IP67, which maintains excellent performance even in harsh outdoor environments. The shock resistance of the SP17 makes it stable and reliable in bumpy and vibrating environments. Due to its outstanding performance, it is the perfect choice for a variety of industries, such as: industrial automation, outdoor electronics, Marine exploration, mining and petrochemical, public utilities and infrastructure. In addition, SP17 provides two wiring methods: crimping and welding, customers can solder their own cables according to their needs, or choose to provide professional welding services by us.

  • 1The shell adopts high quality nylon materialstrong pressure resistance,even when working underwater is not easy to deformation water leakage, safe and durable
  • 1SP series connectors are designed to work in humid or watery environments and can prevent moisture from entering the interior of the connector. This means they are protected from dust and general water impact
  • 1High-quality metal contacts ensure good conductivity and low resistance, thereby reducing signal loss and energy loss
  • 1Durable nylon shell resists physical damage and provides adequate support to protect internal contact elements
  • 1SP series waterproof connectors can work in a wide temperature range and are suitable for various outdoor applications, such as navigation, automobiles, industrial control, lighting systems, etc
  • 1Supports a variety of termination methods, including welding, screw crimping, etc., to meet the needs of different application scenarios
  • 1SP series connectors are often designed to maintain stable electrical performance under harsh conditions such as vibration, shock and pressure changes

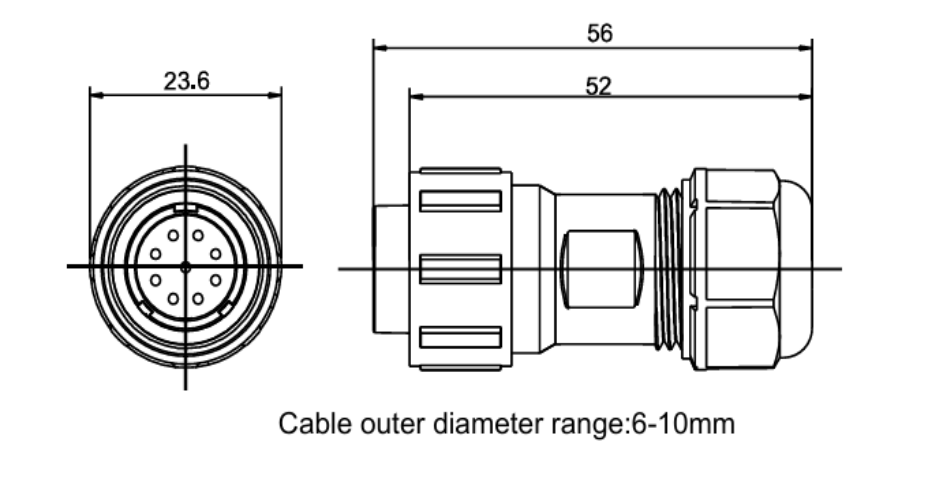

  • SP1710 female waterproof connectors

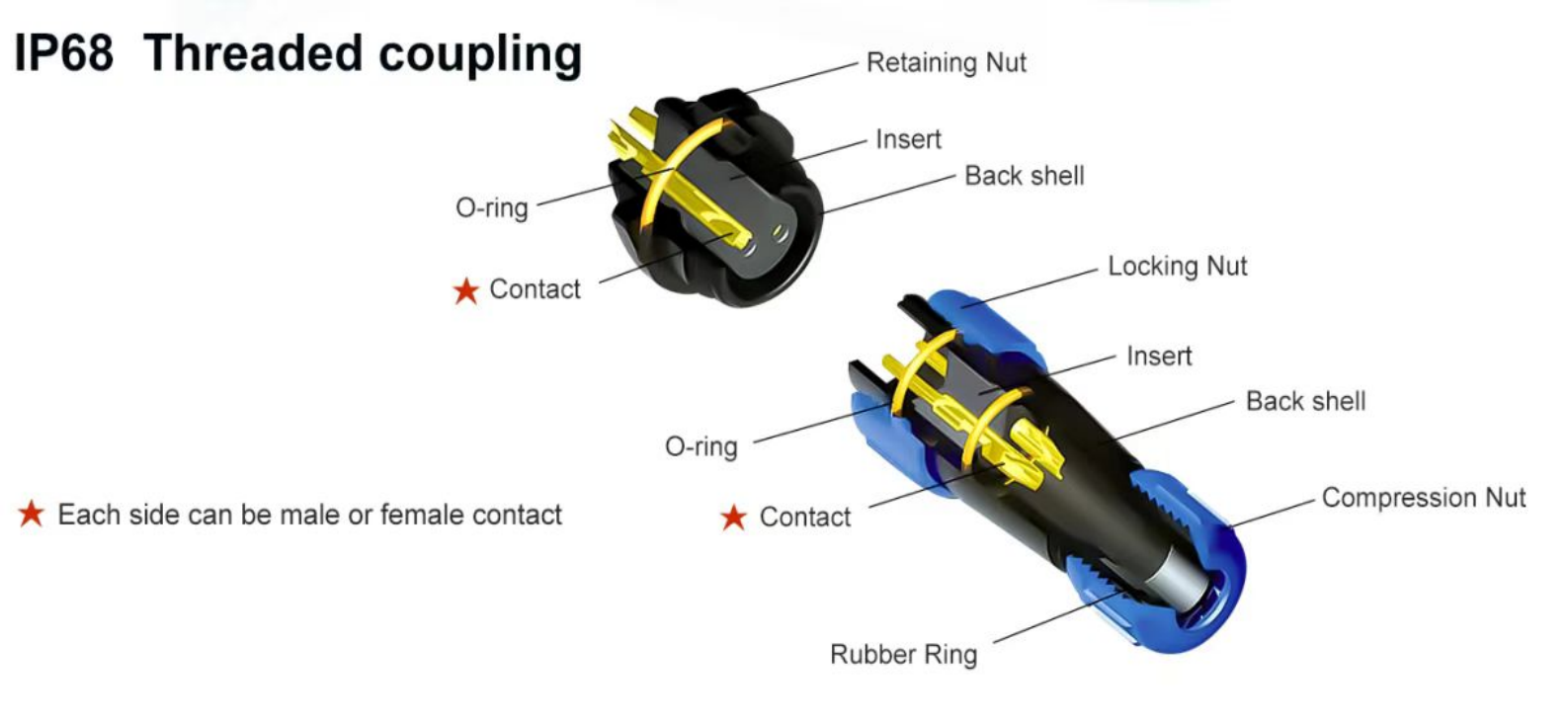

  • Assembly instruction

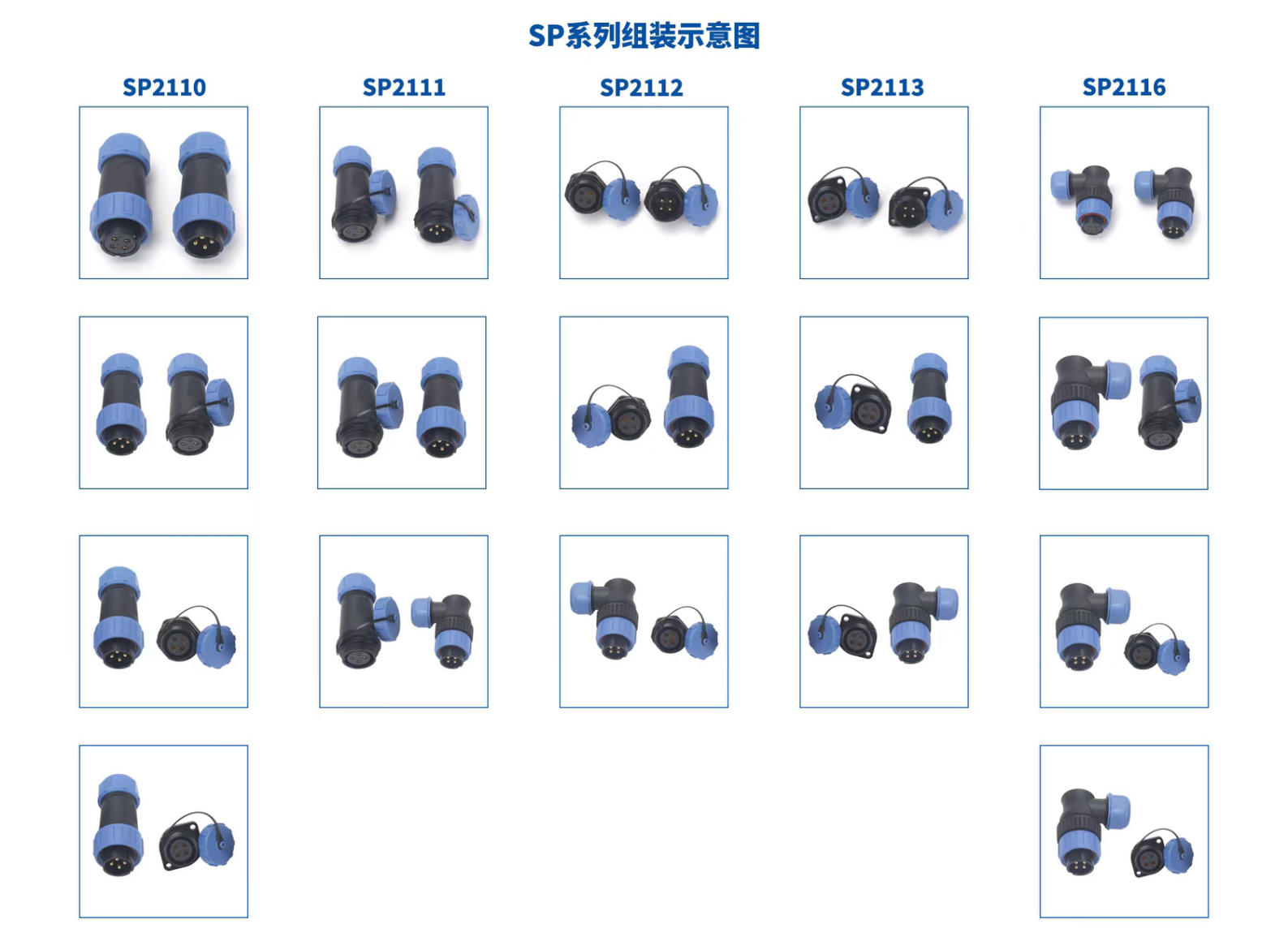

  • Combination mode
  • SP1710 female waterproof connectors
  • Assembly instruction
  • Combination mode
