SP1311 female weipu 2pin 3pin 4pin 5pin 6pin 7pin 9pin plastic field wireable sp waterproof connectors

Brief Information:

  • Model: SP1311-S
  • Gender: Female
  • Available numbers of contacts: 2pin 3pin 4pin 5pin 6pin 7pin 9pin
  • Termination: Soldering
  • Match with: SP1310-P
down load to pdf

SP1311 female connector technical data:

Contacts poles: 2pin 3pin 4pin 5pin 6pin 7pin 9pin
Contact arrangement:
Rated current: 13A 13A 5A 5A 5A 5A 3A
Rated voltage: 250V 250V 200V 180V 125V 125V 125V
Contact diameter: 1.6MM 1.6MM 1MM 1MM 1MM 1MM 0.7MM
Contact resistance: ≤2.5mΩ ≤2.5mΩ ≤5mΩ ≤5mΩ ≤5mΩ ≤5mΩ ≤10mΩ
Wire gauge(mm²/AWG): ≤2/14 ≤2/14 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.5/20
Contacts termination: Soldering
Connector gender: Female
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PPS
Orientation: Straight 180°
Insert material: PPS
Shell material: PC, PA66
Fire resistance: V-0
Contact material: Brass copper plating
Cable diameter range: 4-6.5mm(Not marked)
Mechanical operation： ＞500 times
Temperature range: -40°C~+85°C
Coupline: Threaded coupline
Insulation resistance: 2000 MΩ

The SP13 circular waterproof connector plastics offers the following features and options:

Choice of plug and socket configurations: The SP13 series offers various configurations such as straight, male plugs, and female screw-type sockets to meet different connection needs.
Choice of pin numbers: The SP13 connector provides options ranging from 2 pins to 9 pins, suitable for different working currents and applications.
Maximum working current: The maximum working current of the SP13 series can reach 13A, suitable for high electrical current transmission requirements.
Dust cap: The SP13 series comes with a dust cap, enhancing the connector’s protection in harsh environments.
Waterproof rating IP67: The waterproof rating of the SP13 series is IP67, which can prevent water from entering under certain pressure, making it suitable for outdoor or humid environment use.
Shock resistance: The SP13 series is designed to meet the needs of shock resistance, suitable for use in vibrating environments.
Wire welding service: Customers can weld their own wires as needed or request Wipo to provide welding services.
Wide range of applications: industrial automation, smart manufacturing, urban IoT and city management monitoring, robots and machine tools, photovoltaic and wind energy, lighting and rail transit, security monitoring, LED products and electronic equipment, etc

  • 11:The shell adopts high quality nylon materialstrong pressure resistance,even when working underwater is not easy to deformation water leakage, safe and durable;
  • 12:SP series connectors are designed to work in humid or watery environments and can prevent moisture from entering the interior of the connector. This means they are protected from dust and general water impact;
  • 13:High-quality metal contacts ensure good conductivity and low resistance, thereby reducing signal loss and energy loss;
  • 14: Durable nylon shell resists physical damage and provides adequate support to protect internal contact elements;
  • 15:SP series waterproof connectors can work in a wide temperature range and are suitable for various outdoor applications, such as navigation, automobiles, industrial control, lighting systems, etc;
  • 16:Supports a variety of termination methods, including welding, screw crimping, etc., to meet the needs of different application scenarios.
  • 17:SP series connectors are often designed to maintain stable electrical performance under harsh conditions such as vibration, shock and pressure changes.

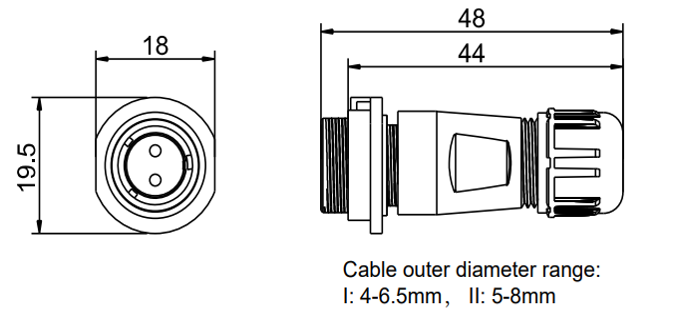

  • SP1311 female waterproof connectors

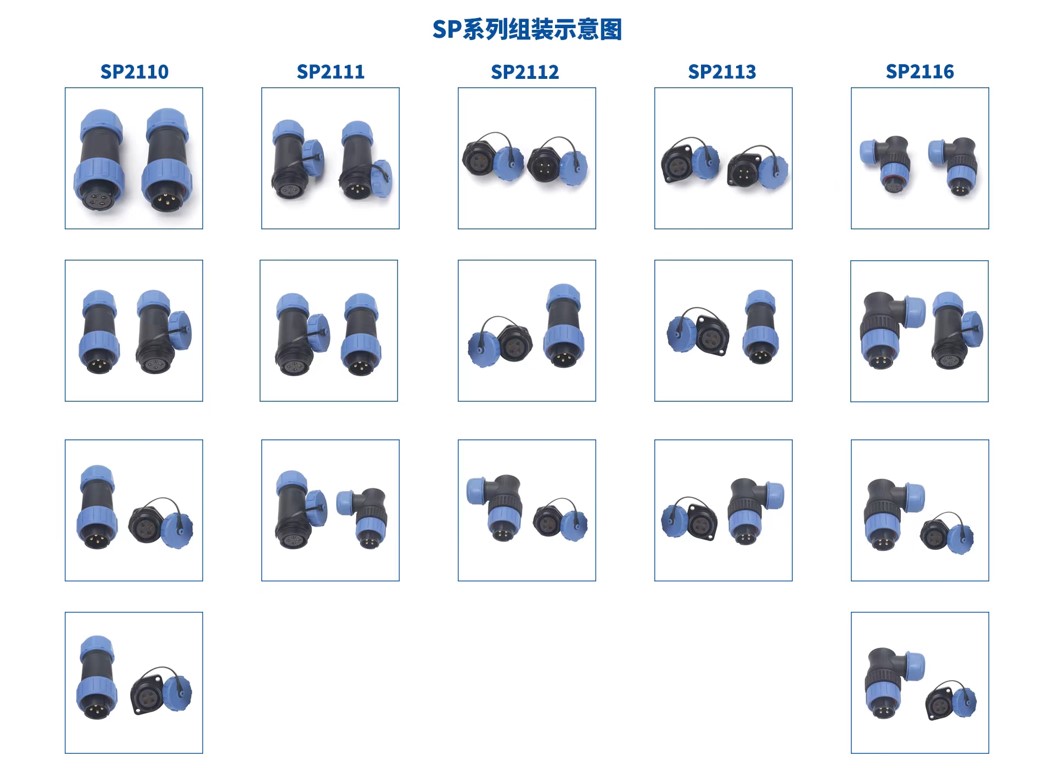

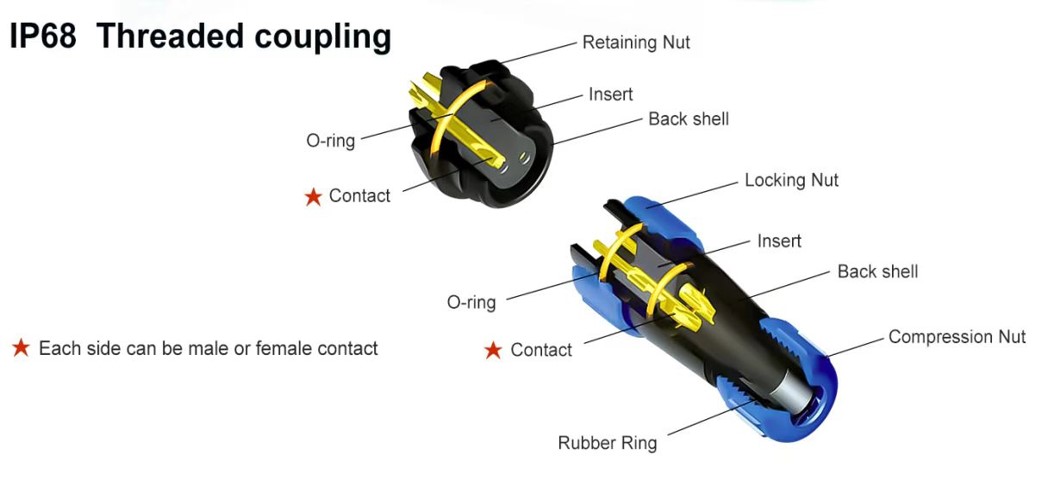

  • Assembly instruction
  • Combination mode:(Take SP21 as example）
  • SP1311 female waterproof connectors
  • Assembly instruction
  • Combination mode:(Take SP21 as example）
