SP1310 female connector
  • SP1310 female connector
  • 图片1
  • 图片2
  • 图片3

SP1310 female weipu 2pin 3pin 4pin 5pin 6pin 7pin 9pin industrial ip67 circular waterproof connectors

Brief Information:

  • Model: SP1310-S
  • Gender: Female
  • Available numbers of contacts: 2pin 3pin 4pin 5pin 6pin 7pin 9pin
  • Termination: Soldering
  • Match with: SP1311-P & SP1312-P
down load to pdf

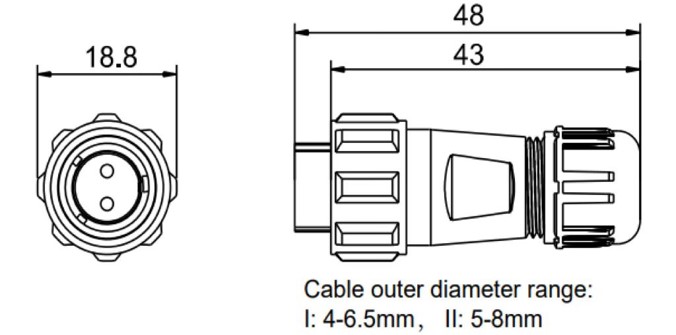

SP1310 female connector technical data:

Contacts poles: 2pin 3pin 4pin 5pin 6pin 7pin 9pin
Contact arrangement:
Rated current: 13A 13A 5A 5A 5A 5A 3A
Rated voltage: 250V 250V 200V 180V 125V 125V 125V
Contact diameter: 1.6MM 1.6MM 1MM 1MM 1MM 1MM 0.7MM
Contact resistance: ≤2.5mΩ ≤2.5mΩ ≤5mΩ ≤5mΩ ≤5mΩ ≤5mΩ ≤10mΩ
Wire gauge(mm²/AWG): ≤2/14 ≤2/14 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.5/20
Contacts termination: Soldering
Connector gender: Female
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PPS
Orientation: Straight 180°
Insert material: PPS
Shell material: PC, PA66
Fire resistance: V-0
Contact material: Brass copper plating
Cable diameter range: 4-6.5mm(Not marked)
Mechanical operation： ＞500 times
Temperature range: -40°C~+85°C
Coupline: Threaded coupline
Insulation resistance: 2000 MΩ

SP series waterproof connectors description:

SP series connectors(SP11 SP13 SP17 SP21 SP29) are widely used in various electrical circuits and plays the role ofconnecting or disconnecting circuits have the following features:
  • 11:The shell adopts high quality nylon materialstrong pressure resistance,even when working underwater is not easy to deformation water leakage, safe and durable;
  • 12:SP series connectors are designed to work in humid or watery environments and can prevent moisture from entering the interior of the connector. This means they are protected from dust and general water impact;
  • 13:High-quality metal contacts ensure good conductivity and low resistance, thereby reducing signal loss and energy loss;
  • 14: Durable nylon shell resists physical damage and provides adequate support to protect internal contact elements;
  • 15:SP series waterproof connectors can work in a wide temperature range and are suitable for various outdoor applications, such as navigation, automobiles, industrial control, lighting systems, etc;
  • 16:Supports a variety of termination methods, including welding, screw crimping, etc., to meet the needs of different application scenarios.
  • 17:SP series connectors are often designed to maintain stable electrical performance under harsh conditions such as vibration, shock and pressure changes.
  • SP1310 female waterproof connectors

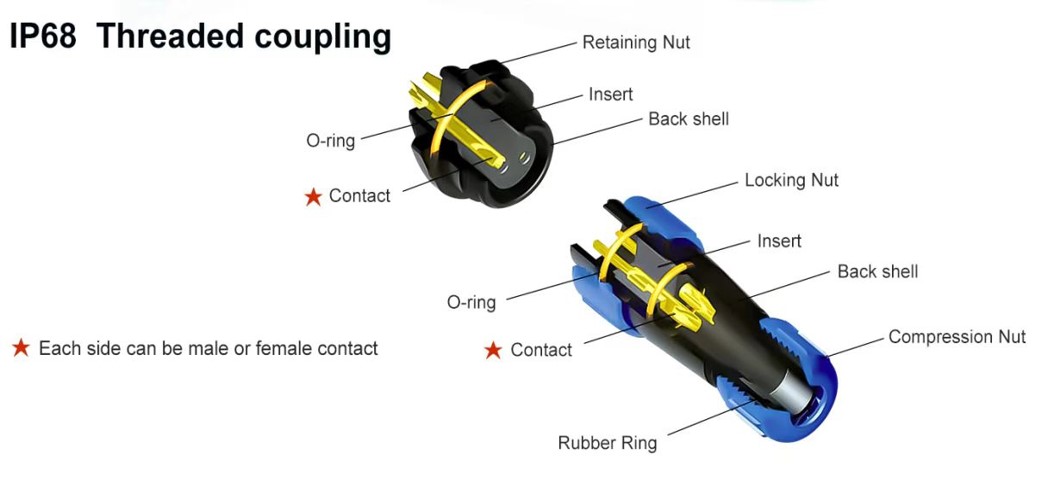

  • Assembly instruction

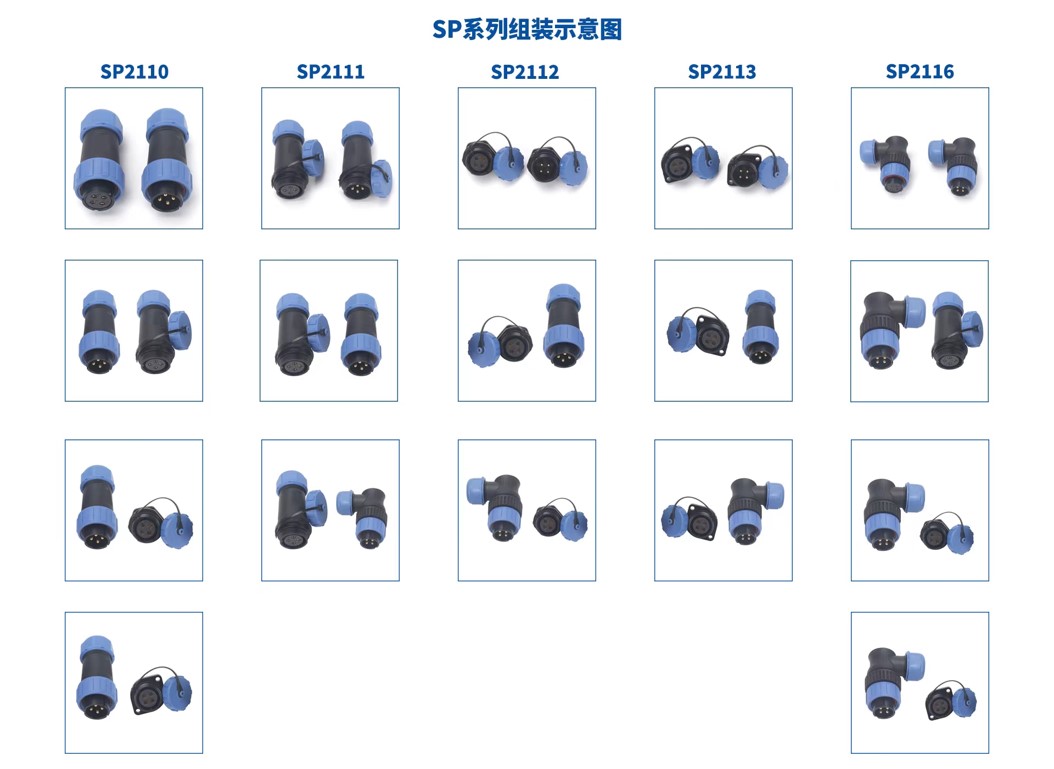

  • Combination mode:(Take SP21 as example）
  • SP1310 female waterproof connectors
  • Assembly instruction
  • Combination mode:(Take SP21 as example）
