SP1111 female 2pin 3pin 4pin 5pin industrial plastic waterproof connectors with cap

Brief Information:

  • Model: SP1111-S
  • Gender: Female
  • Available numbers of contacts: 2pin 3pin 4pin 5pin
  • Termination: Soldering
  • Match with: SP1110-P
down load to pdf

SP1111 male connector technical data:

Contacts poles: 2pin 3pin 4pin 5pin
Contact arrangement:
Rated current: 5A 5A 3A 3A
Rated voltage: 180V 180V 125V 125V
Contact diameter: 1MM 1MM 0.7MM 0.7MM
Contact resistance: ≤5mΩ ≤5mΩ ≤10mΩ ≤10mΩ
Wire gauge(mm²/AWG): ≤0.75/18 ≤0.75/18 ≤0.5/20 ≤0.5/20
Contacts termination: Soldering
Connector gender: Female
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PPS
Orientation: Straight 180°
Insert material: PPS
Shell material: PC, PA66
Fire resistance: V-0
Contact material: Brass copper plating

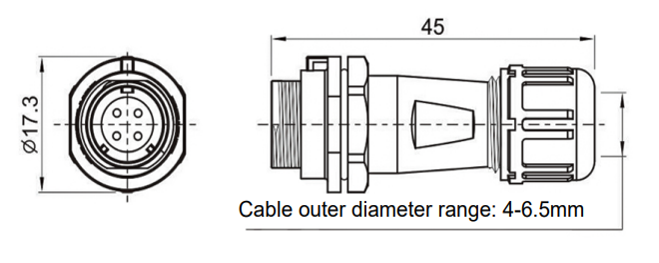

Cable diameter range: 4-6.5mm(Not marked)
Mechanical operation： ＞500 times
Temperature range: -40°C~+85°C

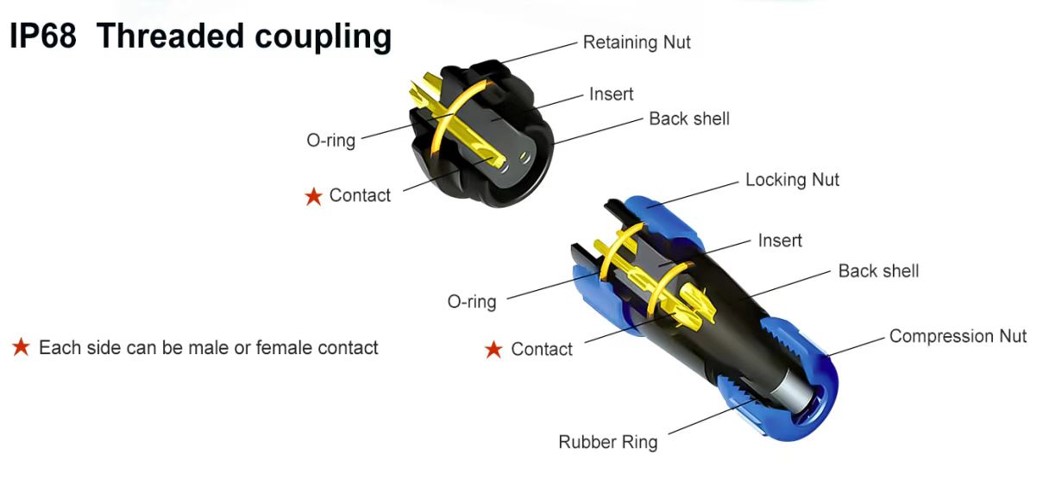

Coupline: Threaded coupline
Insulation resistance: 2000 MΩ

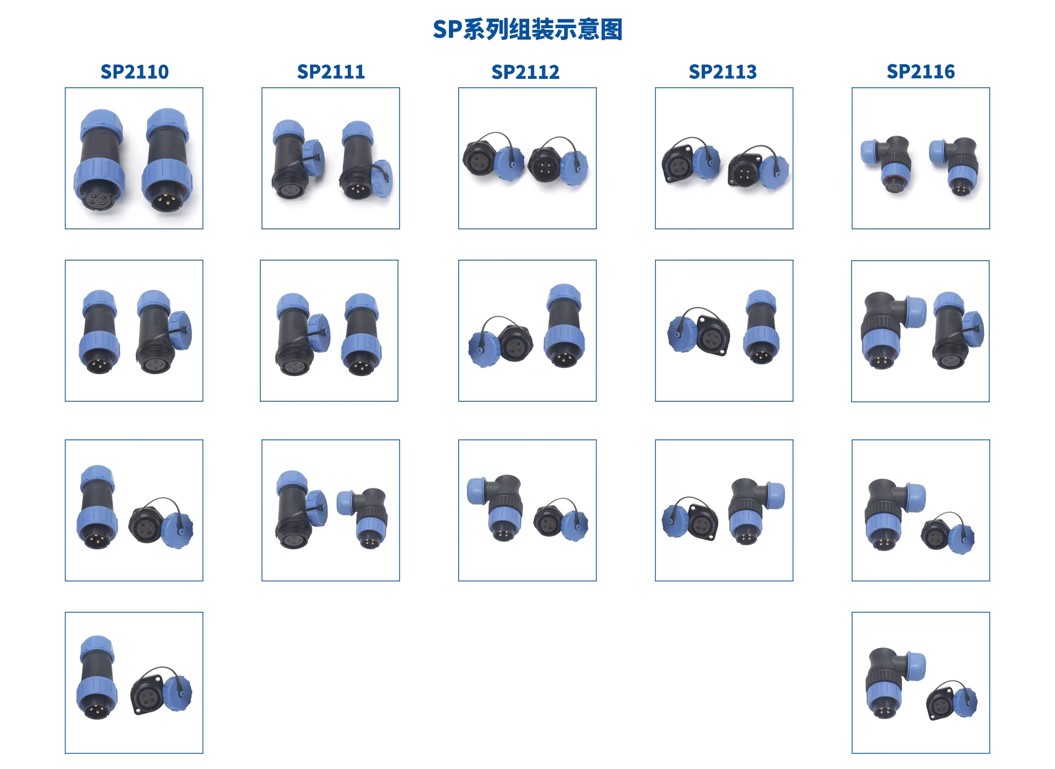

The plastic circular waterproof connector SP11 offers a variety of options:

Connector head and socket options: male and female connector heads and female and male socket options;
Number of cores: SP11 connectors offer 2-core, 3-core, 4-core, and 5-core options to accommodate different working currents and application needs.
Waterproof rating: SP11’s waterproof rating is IP67, which means it can prevent dust from entering and withstand brief submersion in water.
Wire welding service: customers can weld their own wires according to their actual needs, and if customers have the need, FREMI can also provide welding wire services.
Materials and technical parameters: SP11 connectors use threaded locking, the shell material is thermoplastic PC and PA66, the flame retardancy rating is V-0. The insulator is thermoplastic PPS, which can withstand high temperatures up to 260°C. The contact material is copper plated with gold, ensuring good electrical conductivity and corrosion resistance. SP11’s wiring methods include welding, and the cable diameter range is I: 3-4mm and II: 4-6.5mm.
In summary, SP11 connectors offer a variety of core options to meet the needs of different application scenarios, have a high waterproof rating, and can provide wire welding services according to customer needs.

  • 11:The shell adopts high quality nylon materialstrong pressure resistance,even when working underwater is not easy to deformation water leakage, safe and durable;
  • 12:SP series connectors are designed to work in humid or watery environments and can prevent moisture from entering the interior of the connector. This means they are protected from dust and general water impact;
  • 13:High-quality metal contacts ensure good conductivity and low resistance, thereby reducing signal loss and energy loss;
  • 14: Durable nylon shell resists physical damage and provides adequate support to protect internal contact elements;
  • 15:SP series waterproof connectors can work in a wide temperature range and are suitable for various outdoor applications, such as navigation, automobiles, industrial control, lighting systems, etc;
  • 16:Supports a variety of termination methods, including welding, screw crimping, etc., to meet the needs of different application scenarios.
  • 17:SP series connectors are often designed to maintain stable electrical performance under harsh conditions such as vibration, shock and pressure changes.
