Filter Solenoid valve connectors

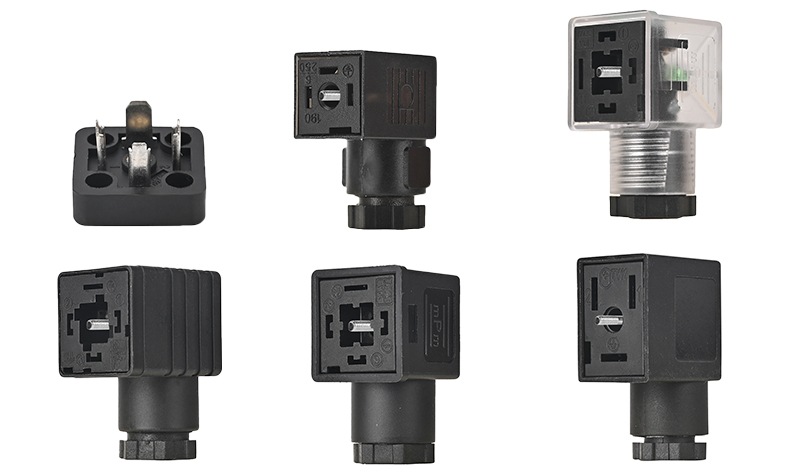

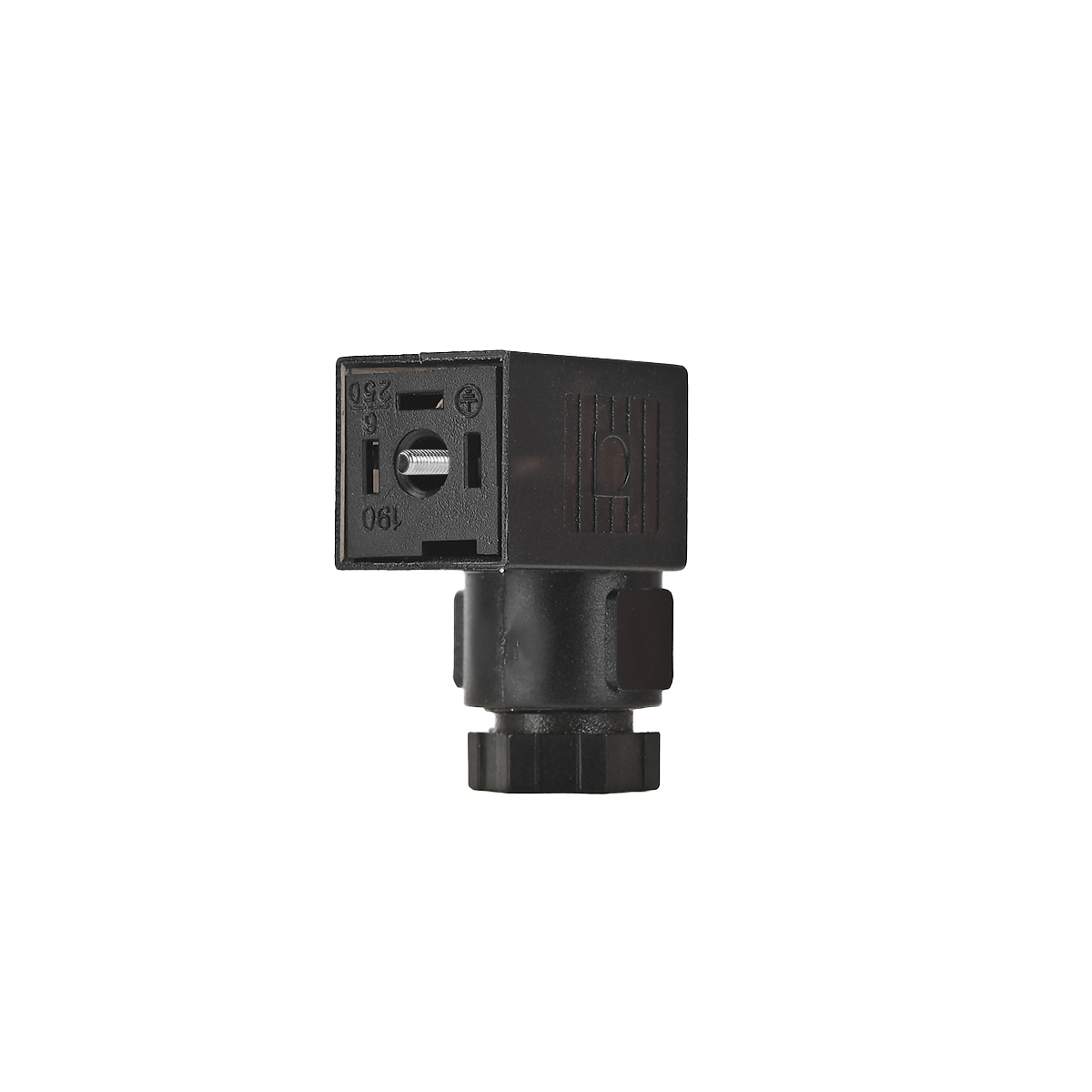

This series of products meet the German DIN43650/EN175301-803 standard, A, B, C three sub-series, can be applied to a variety of solenoid valves, hydraulic valves, pressure transmitters, temperature transmitters, pressure switches, pressure sensors, mechanical equipment, etc., strong interchangeability, can meet the needs of different customers, different occasions. Available in a variety of ordinary black, transparent tape indicator light, with circuit protection, with rectifier plug optional.Our connectors for state-of-the-art automation applications include a series of solenoid valve connectors. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. Depending on the design, they have protection class IP 40 to 67 and are available as self-connectable and moulded versions. For visual status indication, many models are also available as LED variants. Your devices can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.

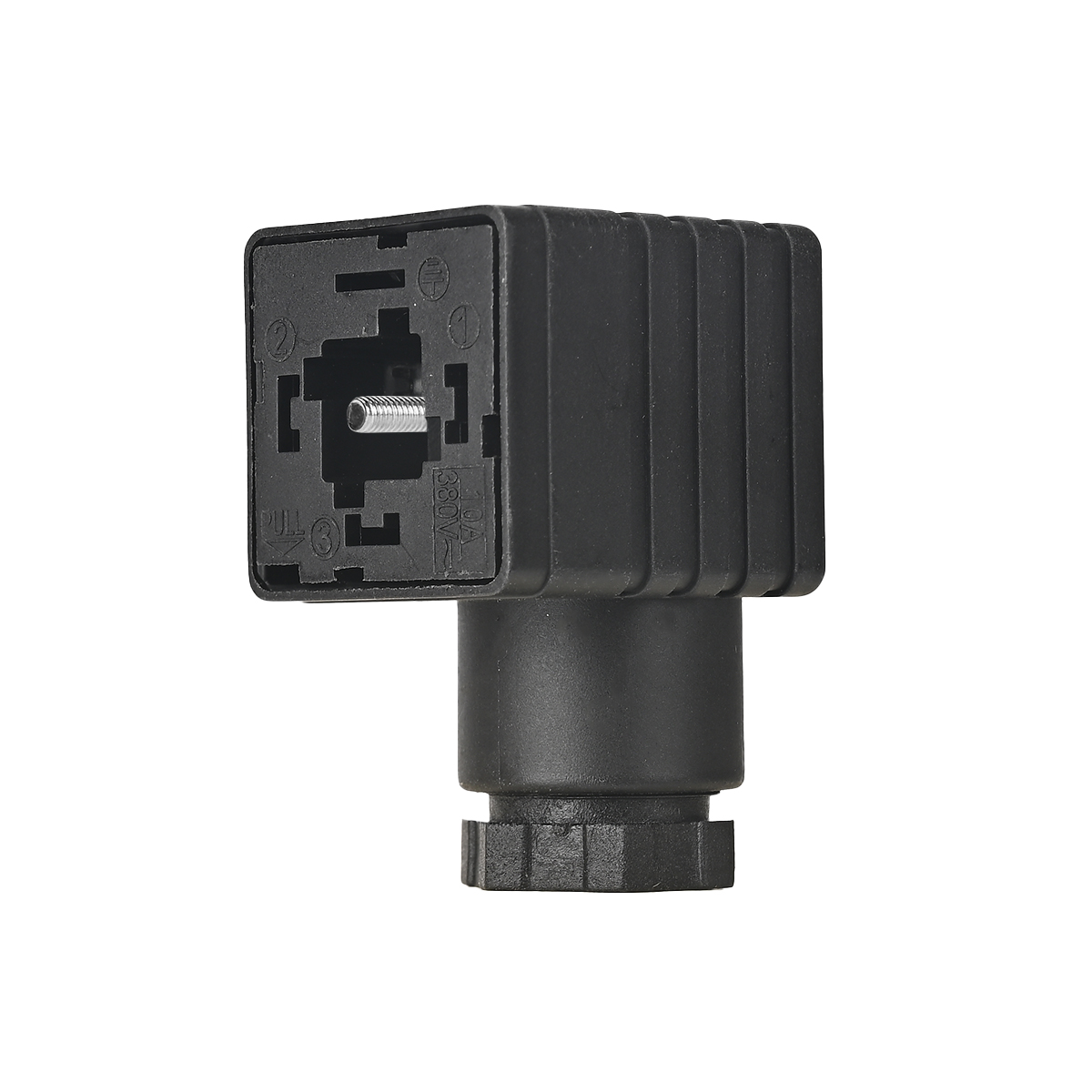

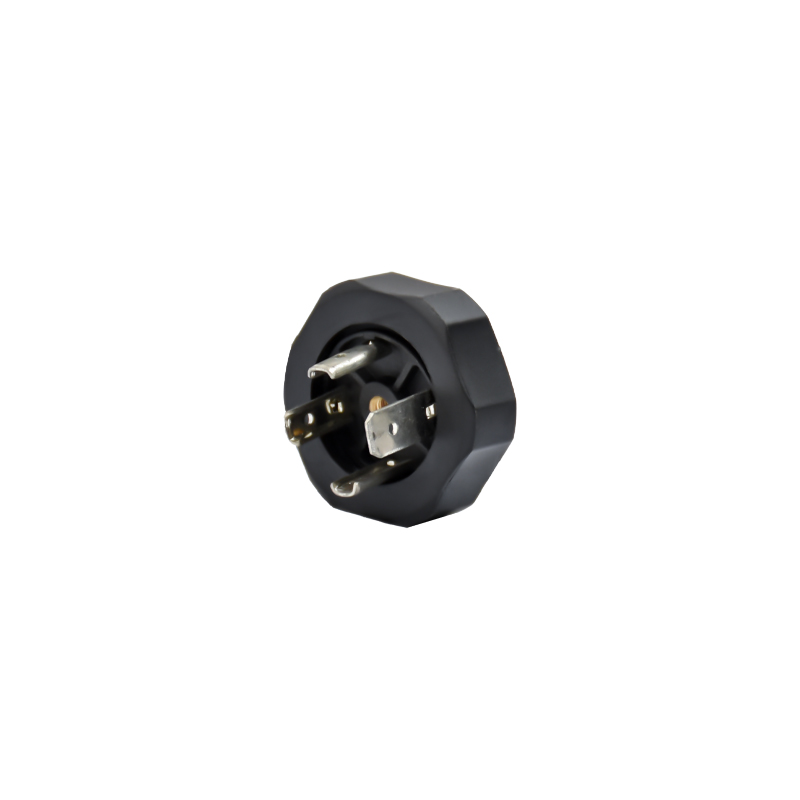

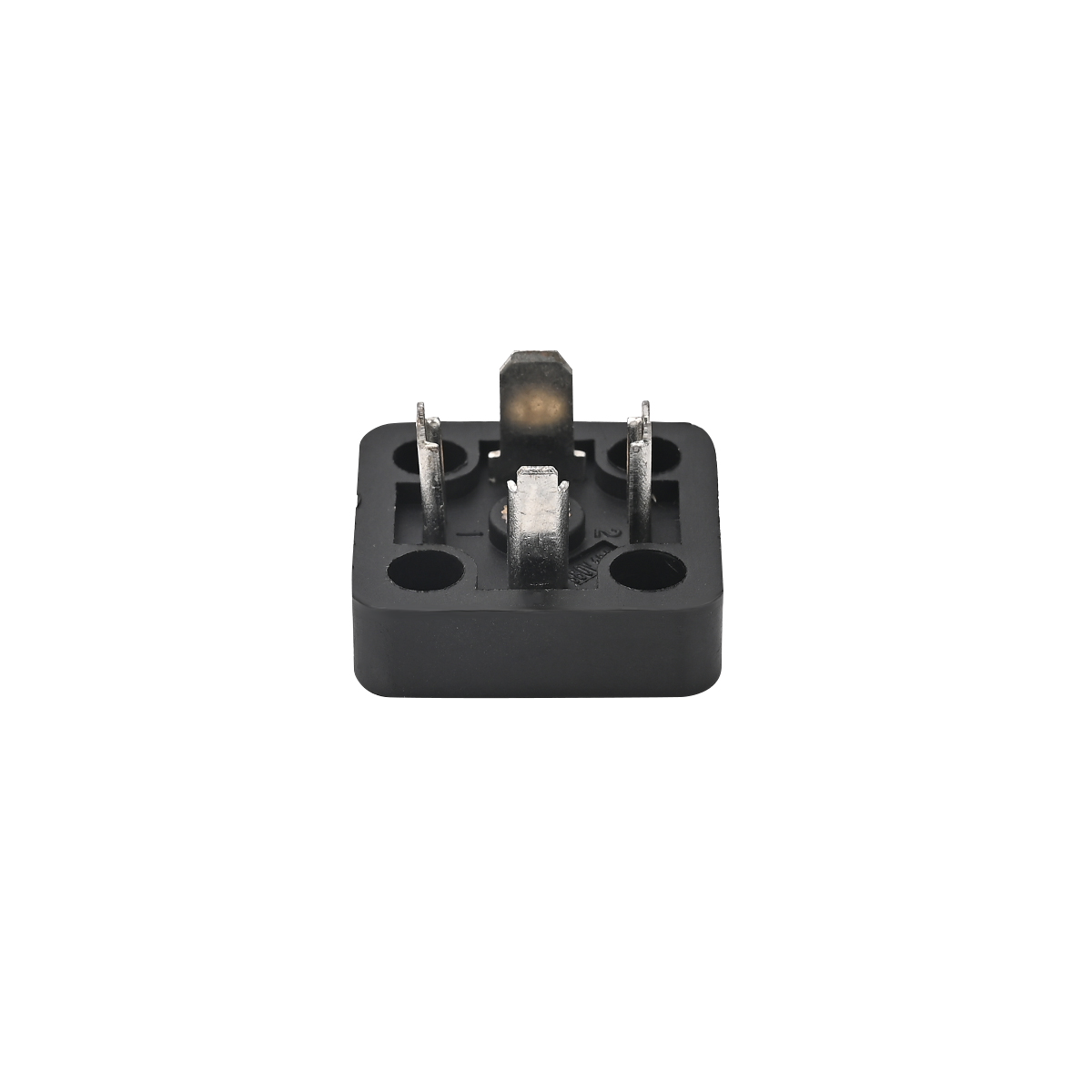

Type A — 2+PE/3+PE; Pin spacing is 18mm, round or square base, widely used in hydraulic valve, solenoid valve, proportional valve, pressure sensor and transmitter, temperature sensor and other fields. Rated current 10A, cable seal tube PG9/PG11, suitable for cable diameter 6-8mm/8-10mm, shell material PA+30%GF, contact material CuZn(Ag).

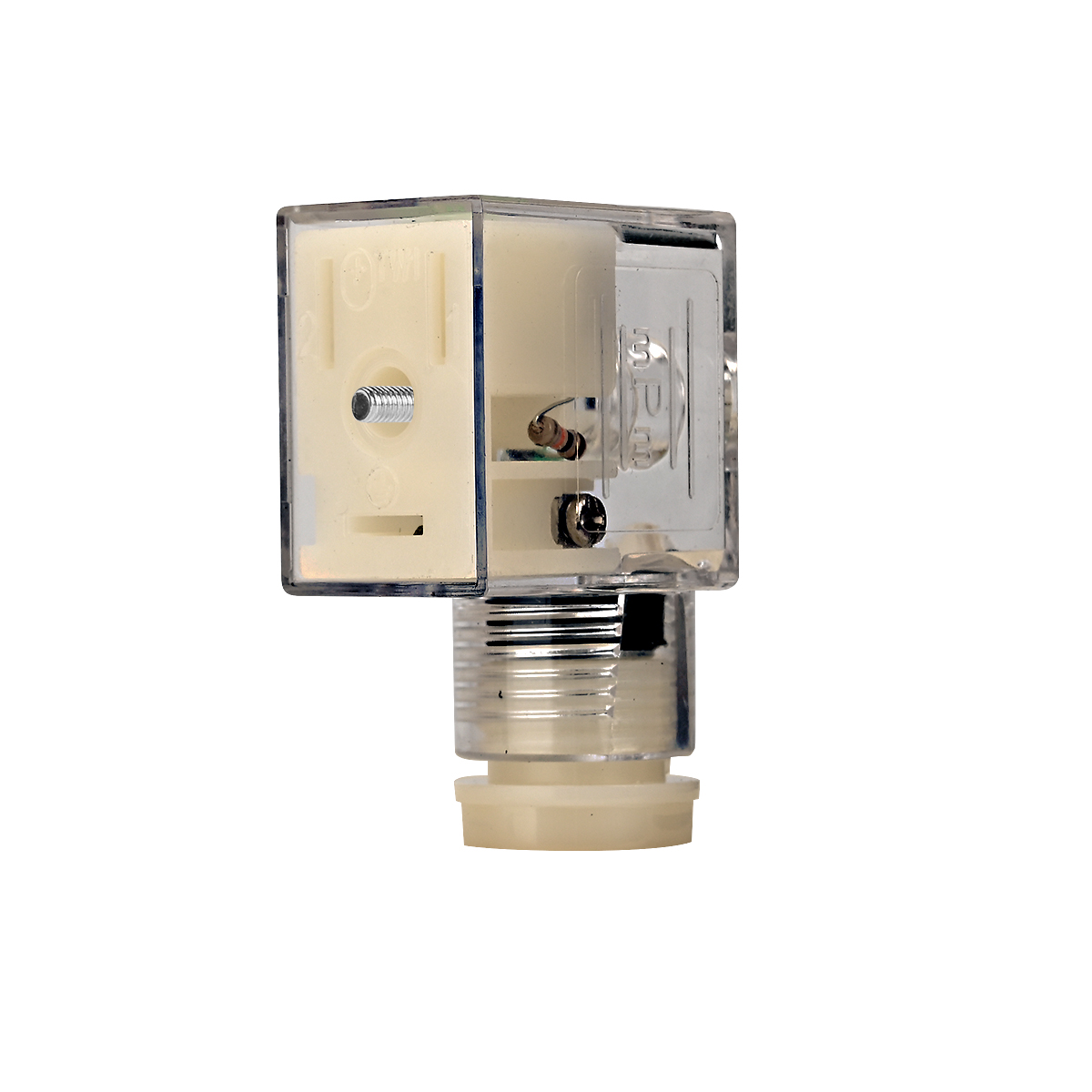

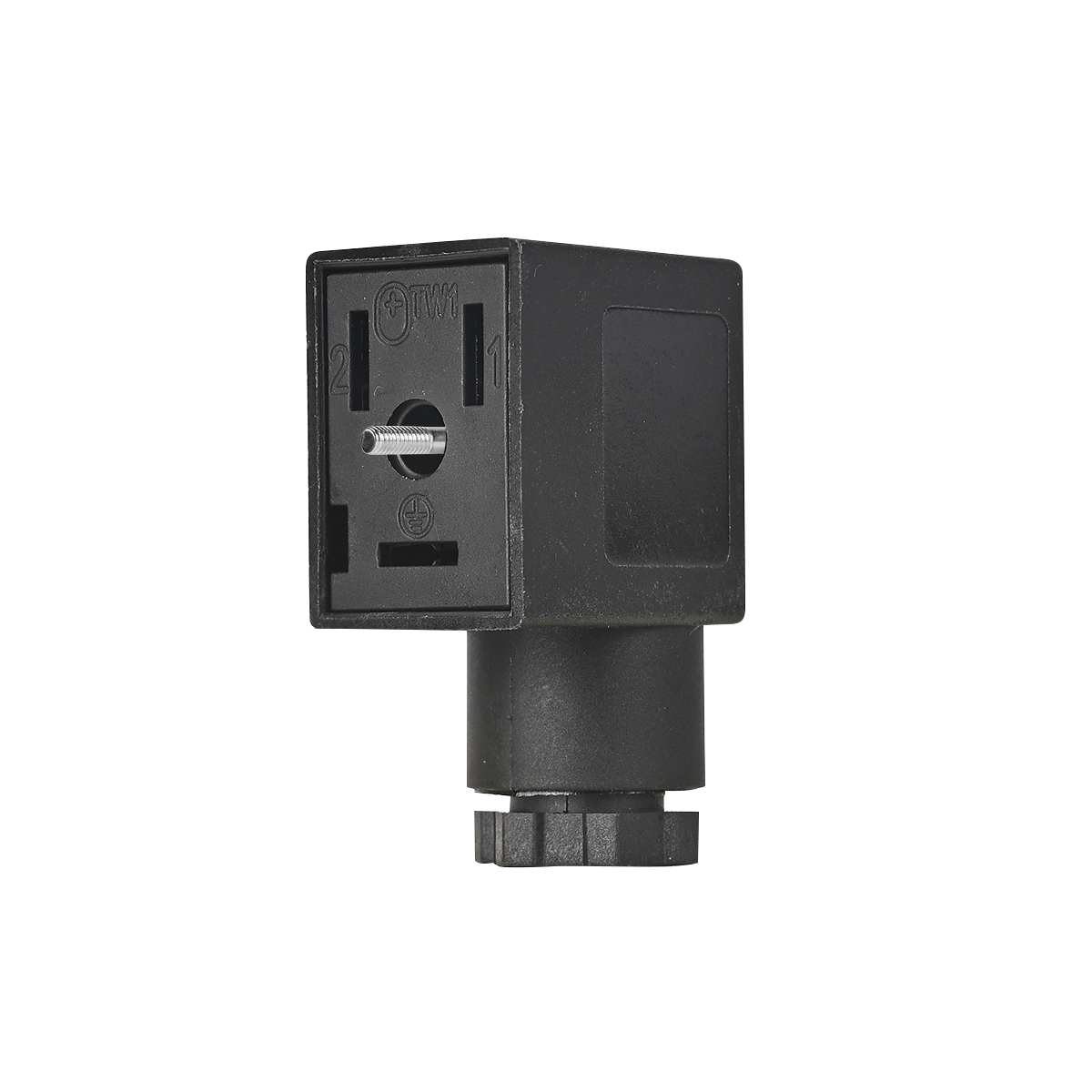

Type B — 2+PE; Pin spacing has two specifications 9mm or 11mm, the product is widely used in the field of solenoid valve, hydraulic valve, proportional valve, servo valve and so on. Rated current 10A, cable sealing tube PG9, suitable for cable diameter 6-8mmm, shell material PA+30%GF, contact material CuZn(Ag).

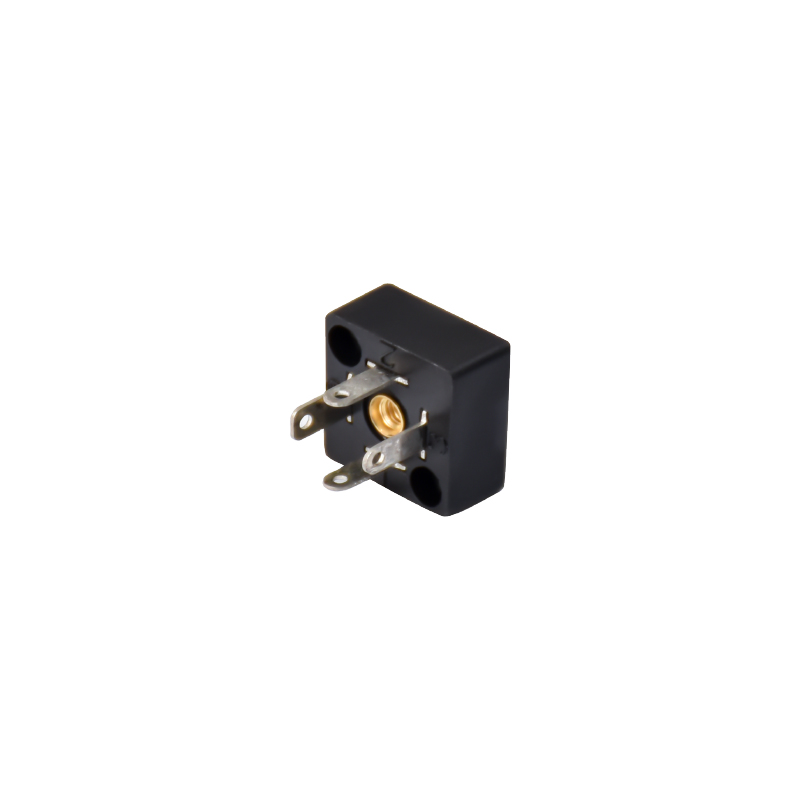

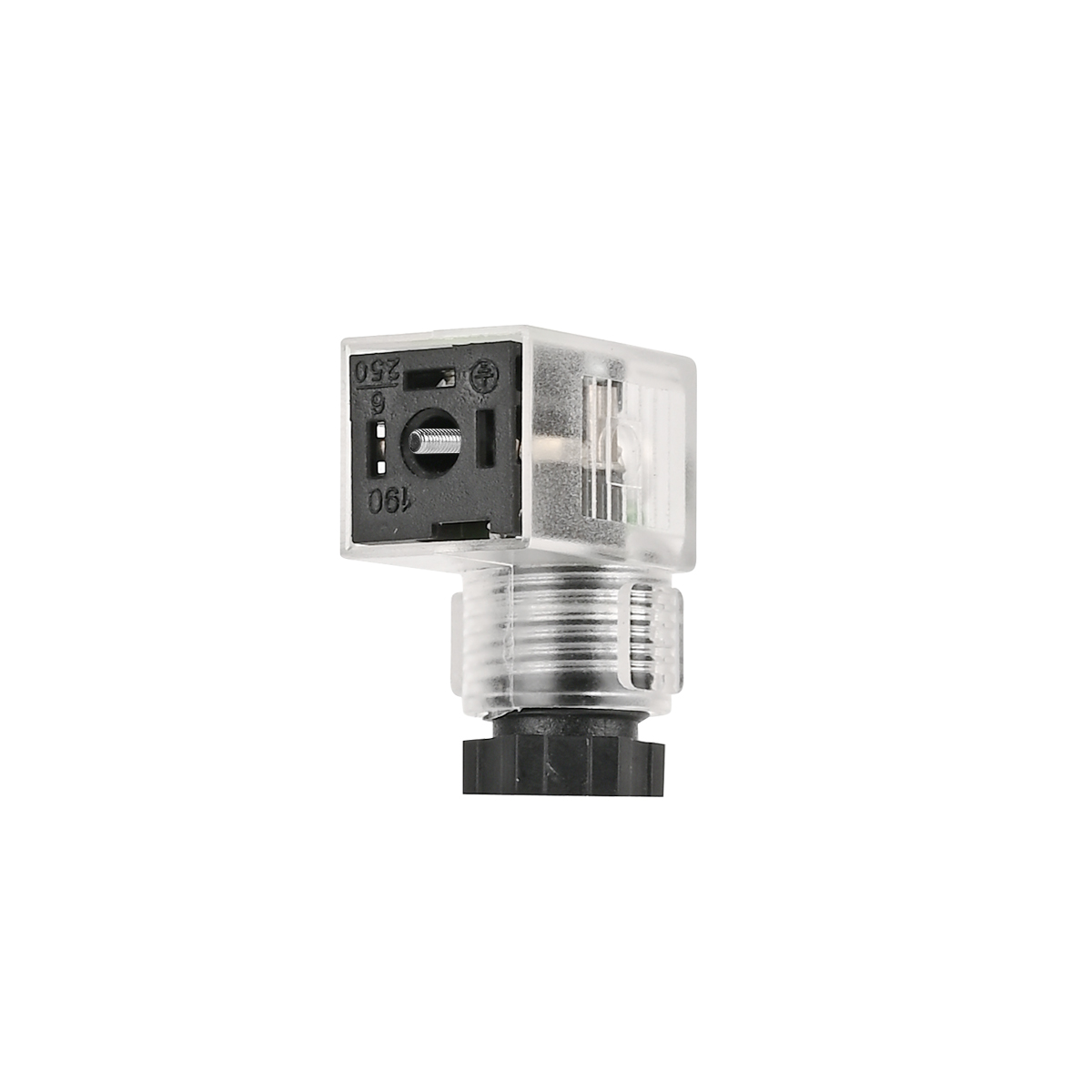

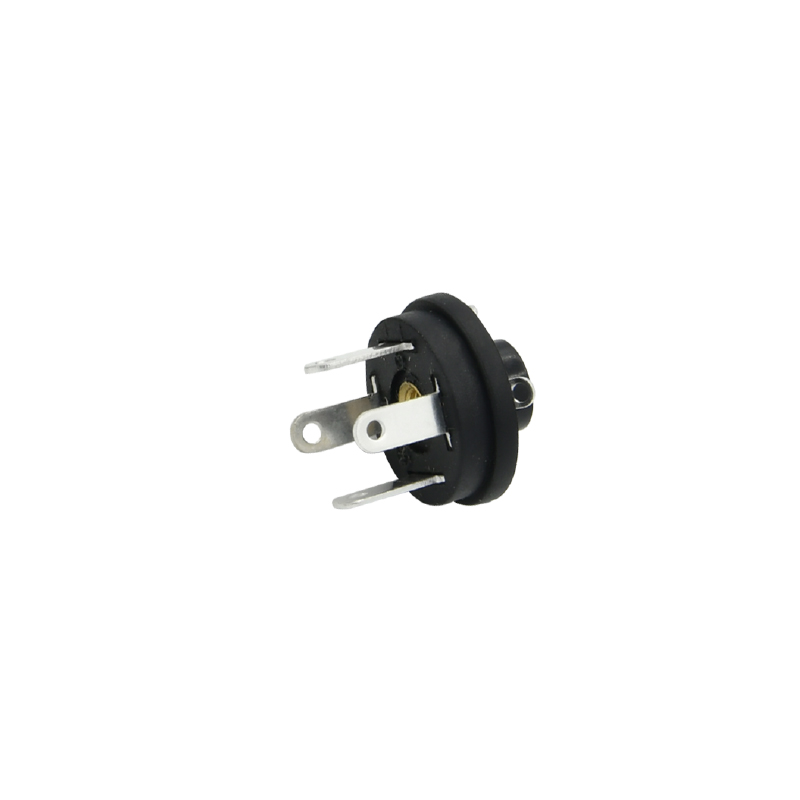

Type C — 2+PE/3+PE; Pin spacing is 8mm or 9.4mm; This series of products is exquisite and compact, easy to plug and unplug, and cheap. Widely used in pressure, temperature and other automatic measurement fields. Rated current 6A, cable sealing tube PG7, suitable for cable diameter 4-6mm, shell material PA+30%GF, contact material CuZn(Ag)
