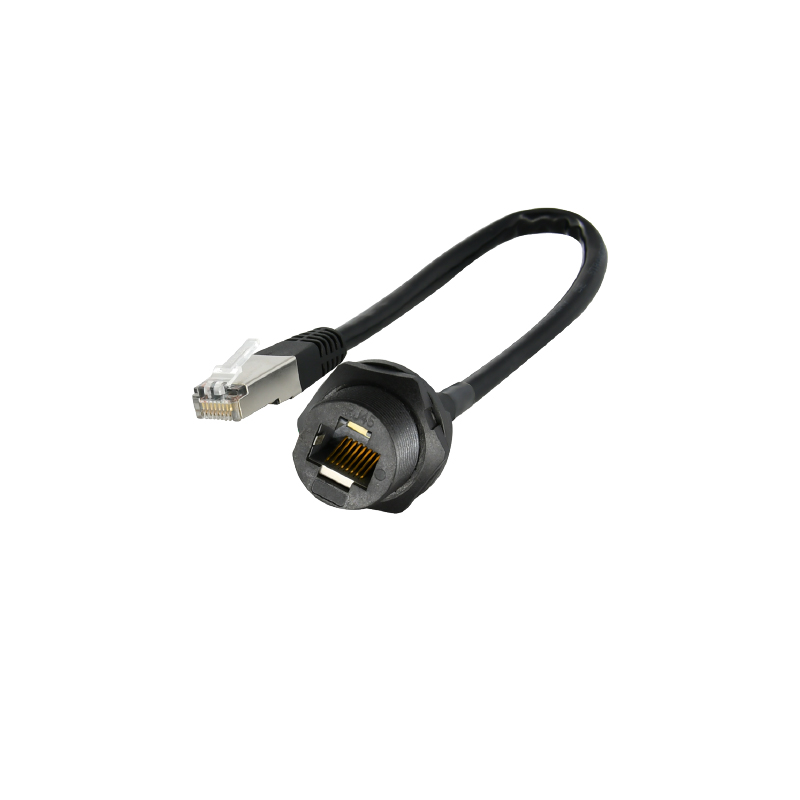

  • RJ45 PANEL MOUNT COINNECTOR
  • RJ45 RECEPTACLE CONNECTOR

RJ45 female panel mount to male molded cable ethernet profinet CAN LAN network ip67 waterproof connector

Brief Information:

  • Model: RJ45 panel mount connector
  • Gender: Female
  • Available numbers of contacts: 8p8c
  • Locking system: Threaded
  • Mounting type: Front fastened
down load to pdf

RJ45 panel mount connector technical data：

Gender: Termination 1 Termination 2
Female Male
Mounting type: Front fastened
Termination: PCB
Application: Power and signal
Temperature range:  -25~+85°C
Pin number: 8P8C
Insulation resistance: MIn 500MΩ at DC500V
Contact resistance: Max 20mΩ
Dielectric withstand voltage: Min AC 1000V / 1 minute
Certification: CE RoHs REACH
IP rating: IP67
Contact: Brass plated gold
Shell material: Nylon
Housing: PA+GF
Orientation: Straight 180°
Flammmability: According to UL 94 V0
Locking system: Threaded
Mechanical operation: ≥500 mating cycles
Wire gauge: 24-26AWG

RJ45 connector description:

RJ45 is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67.
  • 11:Assembly Method: The RJ45 connector is designed to be easily assembled and disassembled by locking a tail nut. This ensures a secure fit between the connector and the cable, preventing it from falling off easily.
  • 12:Waterproof Effect: The connector is designed to achieve an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. This is a significant feature for applications where the connector might be exposed to water or dust.
  • 1Female and male are available
  • 13:Performance: The use of standard super five pure copper four-stranded double wire and crystal heads suggests that the connector is made with high-quality materials to ensure good electrical performance.
  • 14:Ease of Connection: The connector does not require welding or special installation tools. The standard crystal head can be directly inserted, allowing for quick installation and use.
  • 15:Safety and Reliability: The threaded connection provides a secure and reliable connection that can withstand impacts, vibrations, and tensile forces.
  • 16:Signal Integrity: Since the plug and socket do not need to break or interrupt the original wiring structure, there is no signal attenuation, ensuring that the signal quality is maintained.
More information about RJ45 connectors may you are concerned:
HS Code: 8538900000
Customzied: Acceptable
MOQ: 1pcs for normal type
Package: One pcs in PE bag
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days

Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced
  • RJ45 female panel mount connector brief size information:

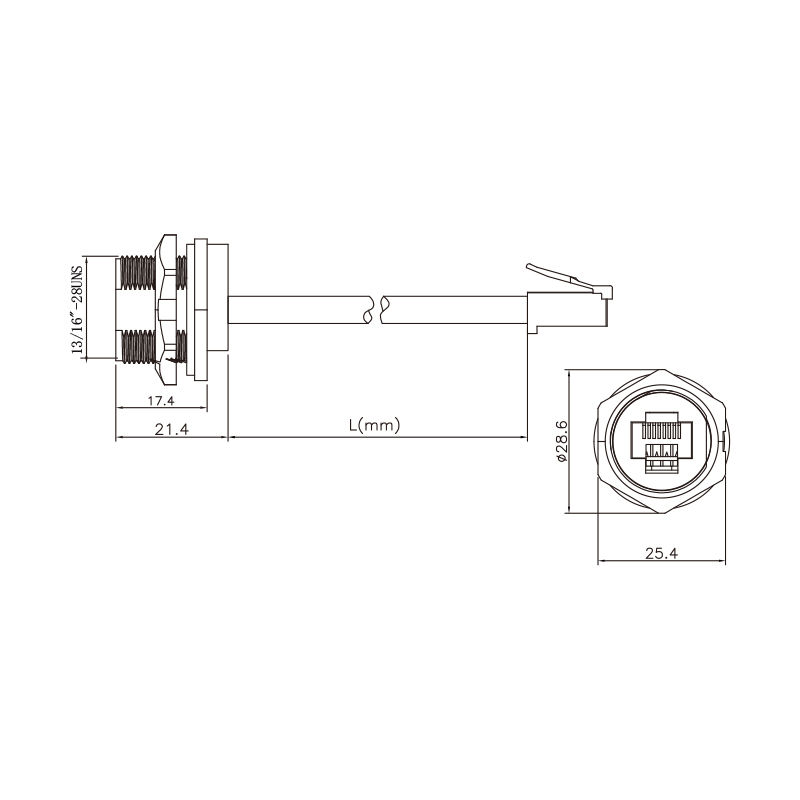

  • RJ45 female panel mount connector brief size information:
