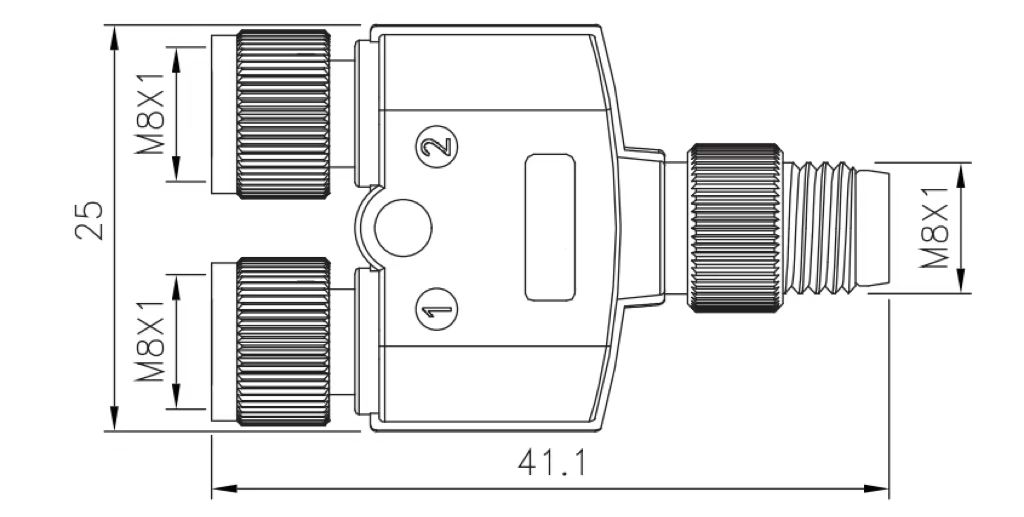

M8 3 4 5 6 8cores male to female Y type 3 ways plug waterproof circular connector

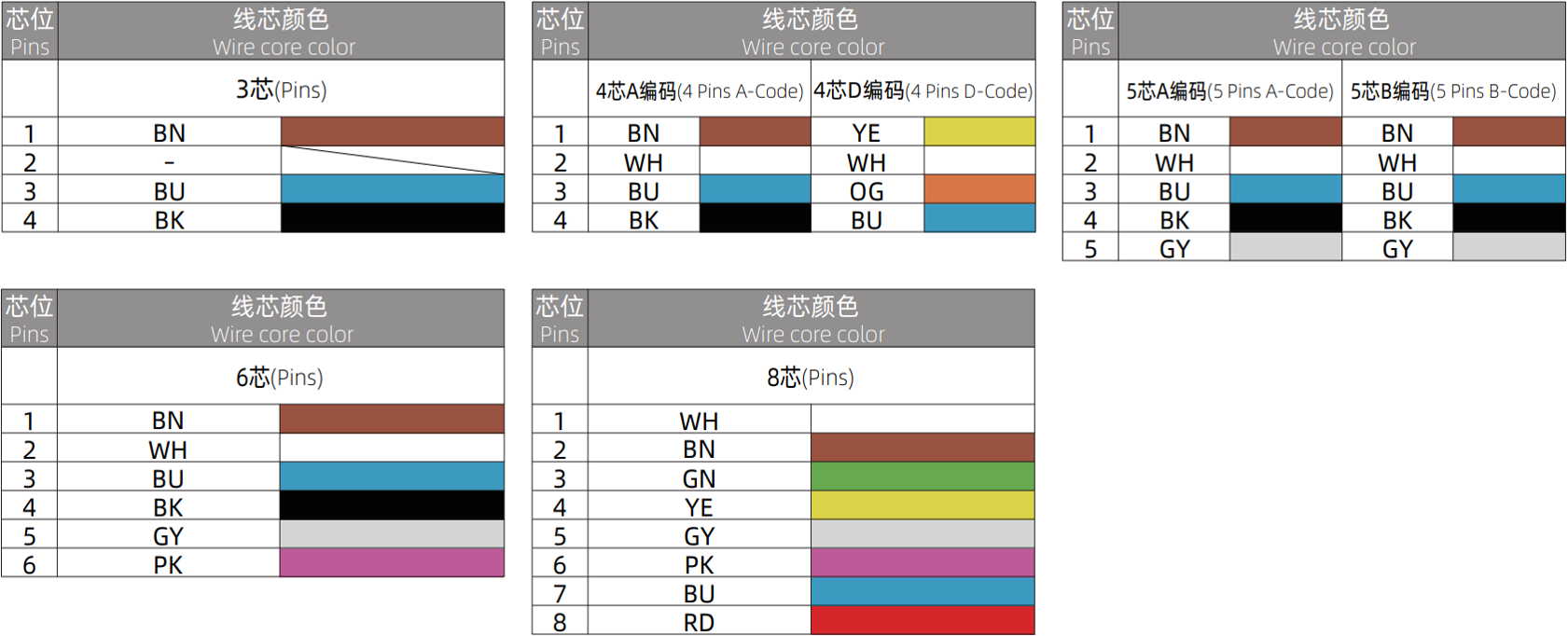

| Contacts poles: | 3pin | 4pin | 5pin | 6pin | 8pin | |
| Contact arrangement:(male) |  |
 |
 |
 |
 |
 |
| Contact arrangement:(female) |  |
 |
 |
 |
 |
 |
| Coded: | A | A | D | B | A | A |
| Rated current: | 4A | 3A | 2A | 1.5A | ||
| Rated voltage: | 60V | 30V | ||||
| Wire gauge: | 24AWG/0.25MM² | 26AWG/0.14MM² | ||||
| Connector gender: | Male split two female | |||||
| Waterproof protection: | IP67(1m depth water 30 miuntes) | |||||
| Temperature rating: | -25°C~+80°C | |||||
| O-ring: | FKM or silicon | |||||
| Connector insert: | PA+GF | |||||
| Orientation: | Straight 180° | |||||
| Locking type: | Screw fixed | |||||
| Screw thread: | M8*1.0 | |||||
| Overmolded material: | PVC or TPU | |||||
| Contacts plating: | Brass with gold plated | |||||
| Shell/Nut/Screw: | Brass with nickel plated | |||||
| Pollution degree: | III | |||||
| Insulation resistance: | ≥100MΩ | |||||
| Contact resistance: | ≤5mΩ | |||||
| Mechanical operation： | ＞500 times | |||||
| EMC shielding: | Accroding to your request | |||||
| Reference standard: | IEC 61076-2-104 | |||||
Description:
M8 connectors is a connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, generally connecting with automation sensors in factory packaging and delivery system, outdoor LED module, security grating screen, and new energy signal control applications.
- 13 pin, 4 pin, 5 pin, 6 pin, 8 pins are available
- 1Female and male are available
- 1A/B/D coding are supported
- 1Straight 180° and right angle 90° are available
- 1Custom cable specification and lengths, molded with PVC or PUR cable
- 1The socket counter part with PCB contacts or Solder type panel mount connectors
- 1Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cables are available
- 1Voltage rating: 30-60V
- 1Current rating: 1.5-4A
- 1IP67 protection degree
- 1Anti-vibration is available
| More information about M8 connectors may you are concerned: | ||
| HS Code: | 8538900000 | |
| Customzied: | Acceptable | |
| MOQ: | 1pcs for normal type | |
| Package: | One pcs in PE bag or one plate in blister box | |
| Single weight: | / | |
| Shipping method: | By express or by sea | |
| Shipping date: | Samples:3-7 working days
Bulk order:Negotiable |
|
| Environmentally friendly: | Yes, CE,RoHs and REACH complianced | |
