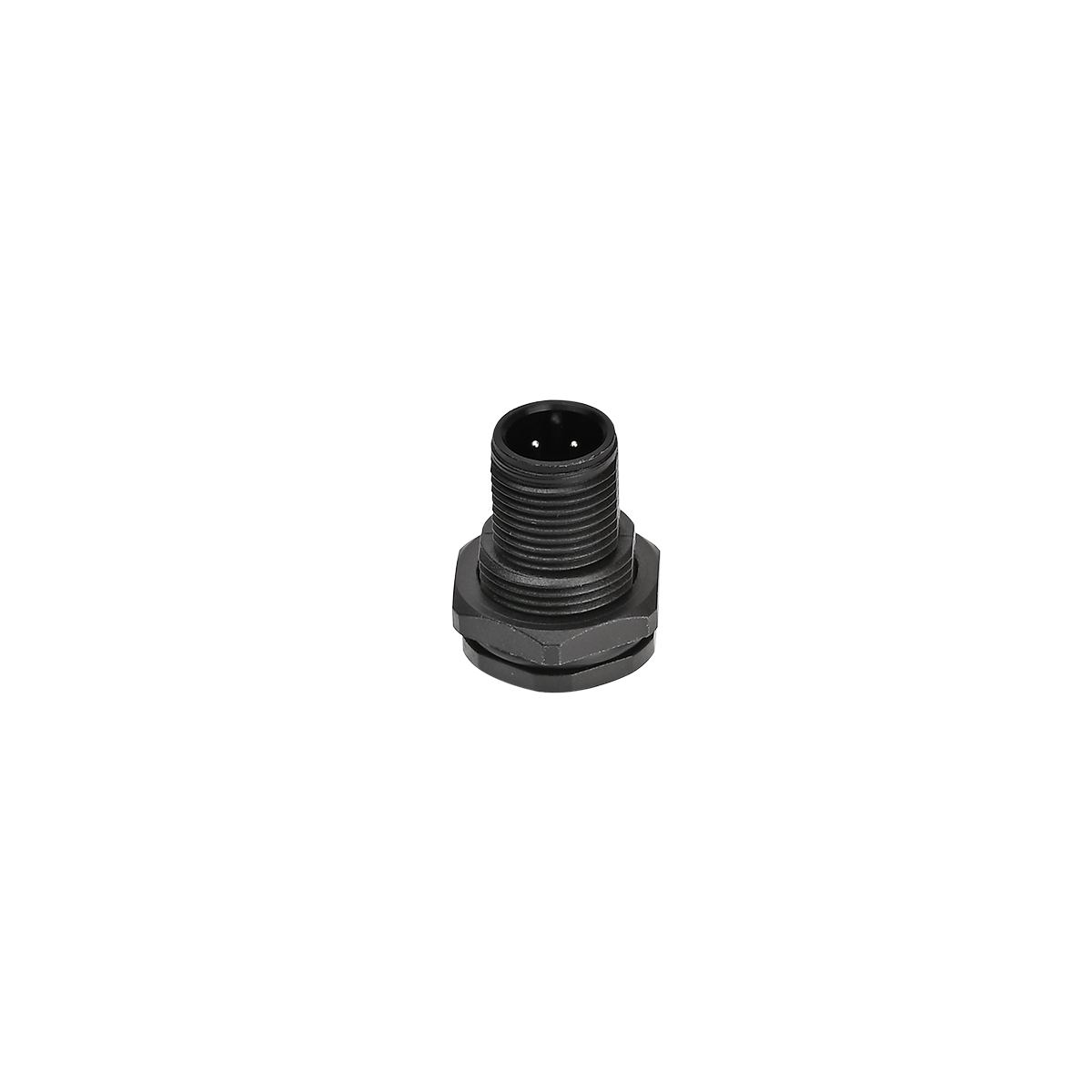

  • M12 male front lock connector
  • M12 connector
  • 图片1
  • 图片2

M12 panel mount plastic 3 4 5 8 12 17pin a b d coded male pigtail ip68 electrical connectors

Brief Information:

  • Model: M12 connector
  • Gender: Male
  • Available numbers of contacts: 3pin 4pin 5pin 8pin 12pin 17pin
  • Coding: A B D coding
  • Mounting type: Front fastened
  • Contacts termination: Soldering & Wires welded/PCB
  • Screw thread: M12*1.0/M15*1.0
down load to pdf

M12 panel mount connector technical data:

Contacts poles: 3pin 4pin 5pin 8pin 12pin 17pin
Contact arrangement:
Coded: A A D A B A A A
Rated current: 4A 4A 4A 4A 4A 2A 1.5A 1.5A
Rated voltage: 250V 250V 250V 250V 250V 60V 30V 30V
Wire gauge: 22AWG/0.34MM² 24AWG/0.25MM² 26AWG/0.14MM²
Contacts termination: Soldering & Wires welded/PCB
Connector gender: Male
Mounting type: Front fastened
Waterproof protection: IP67(1m depth water 30 miuntes)
Cable temperature range: -25°C~+80°C
O-ring: FKM or silicon
Sealing material: Epoxy resin
Connector insert: PA+GF
Flamability: UL94 HB
Orientation: Straight 180°
Connector locking system: Screw
Screw thread: M12*1.0/M15*1.0
Contacts plating: Brass with gold plated
Shell/Nut/Screw: Nylon
Pollution degree: III
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Mechanical operation： ＞500 times
EMC shielding: Not available
Reference standard: IEC 61076-2-101

Description:

M12 industrial waterproof connectors are designed for industrial environments,they typically have a high level of protection against moisture, dust and other harsh environmental factors. These connectors are commonly used in applications such as industrial Ethernet, fieldbuses,automation, sensors and actuators to ensure reliability and durability in demanding conditions:
  • 14 types: molded type/field wireable type/panel mount type/T&Y adapter
  • 12pin, 3 pin, 4 pin, 5 pin, 6 pin, 8 pin,12pin,17pin are available
  • 1Female and male are available
  • 1A/B/D coding are supported
  • 1Straight 180° and right angle 90° are available
  • 1Custom cable specification and lengths, molded with PVC or PUR cable
  • 1The socket counter part with PCB contacts or Solder type panel mount connectors
  • 1Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cables are available
  • 1Voltage rating: 30-250V
  • 1Current rating:1.5-4A
  • 1IP67/IP68 protection degree
  • 1Anti-vibration is available

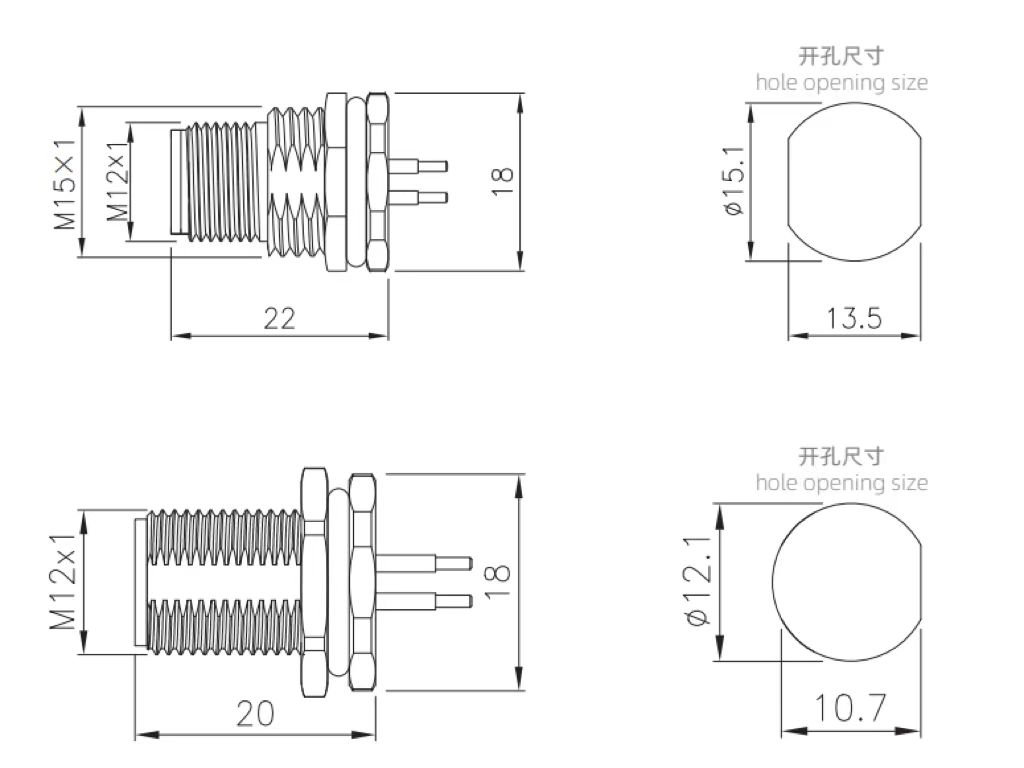

  • M12 male socket type connector drawing

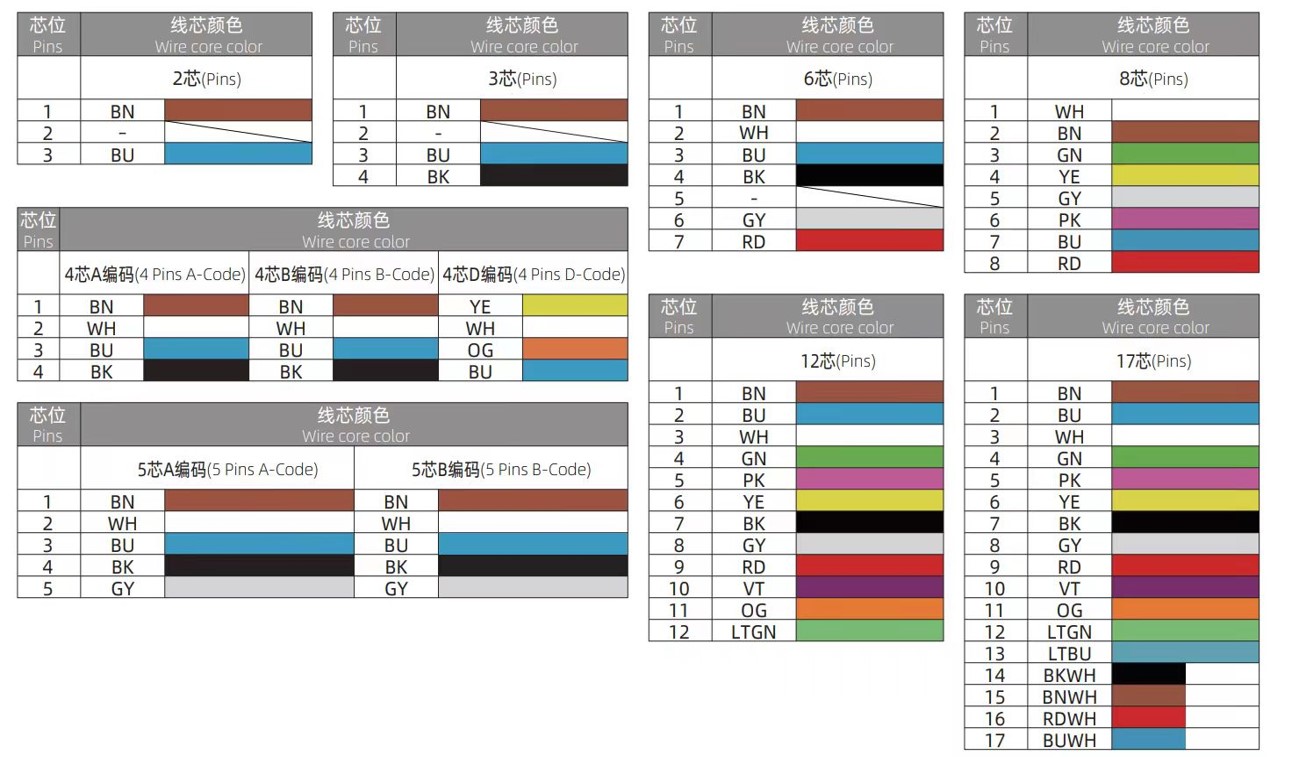

  • M12 bulkhead circular connector wire definition

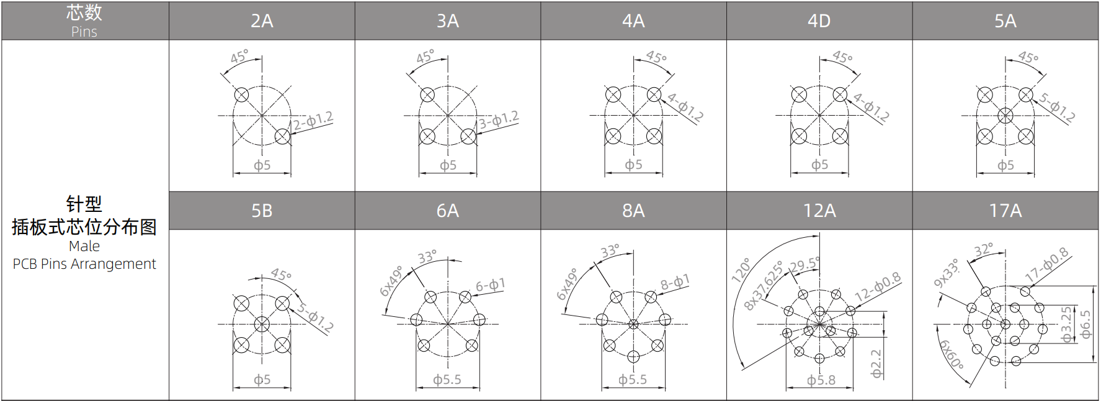

  • M12 PCB male pins arrangement
  • M12 male socket type connector drawing
  • M12 bulkhead circular connector wire definition
  • M12 PCB male pins arrangement
