M12 field wireable 3 4 5 8 12 17pin male plastic NMEA2000 right angle ip67 waterproof cable joint connector

Brief Information:

  • Model: M12 connector
  • Gender: Male
  • Available numbers of contacts: 3pin 4pin 5pin 8pin 12pin 17pin
  • Coding: A B D coding
  • Orientation: Angled 90°
  • Contacts termination: Soldering & screw type
down load to pdf

M12 field wireable connector technical data:

Contacts poles: 3pin 4pin 5pin 8pin 12pin 17pin
Contact arrangement:
Coded: A A D A B A A A
Rated current: 4A 4A 4A 4A 4A 2A 1.5A 1.5A
Rated voltage: 250V 250V 250V 250V 250V 60V 30V 30V
Wire gauge: 22AWG/0.34MM² 24AWG/0.25MM² 26AWG/0.14MM²
Contacts termination: Screw(normally) Soldering & screw Soldering
Connector gender: Male
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PA+GF
Orientation: Angled 90°
Screw thread: M12*1.0
Suitable cable OD: PG7:4-6MM      PG9:4-8MM
Cable temperature range: -25°C~+80°C
Connector locking system: Screw
Contacts plating: Brass with gold plated
Shell material: Nylon/PA
Pollution degree: III
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Mechanical operation： ＞500 times
EMC shielding: Not available
Reference standard: IEC 61076-2-101

Description:

M12 industrial waterproof connectors are designed for industrial environments,they typically have a high level of protection against moisture, dust and other harsh environmental factors. These connectors are commonly used in applications such as industrial Ethernet, fieldbuses,automation, sensors and actuators to ensure reliability and durability in demanding conditions:
  • 14 types: molded type/field wireable type/panel mount type/T&Y adapter
  • 12pin, 3 pin, 4 pin, 5 pin, 6 pin, 8 pin,12pin,17pin are available
  • 1Female and male are available
  • 1A/B/D coding are supported
  • 1Straight 180° and right angle 90° are available
  • 1Custom cable specification and lengths, molded with PVC or PUR cable
  • 1The socket counter part with PCB contacts or Solder type panel mount connectors
  • 1Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cables are available
  • 1Voltage rating: 30-250V
  • 1Current rating:1.5-4A
  • 1IP67/IP68 protection degree
  • 1Anti-vibration is available

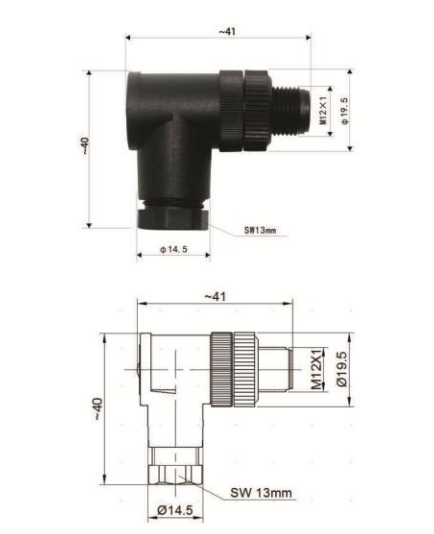

  • M12 male elbow plastic assembly type connector drawing

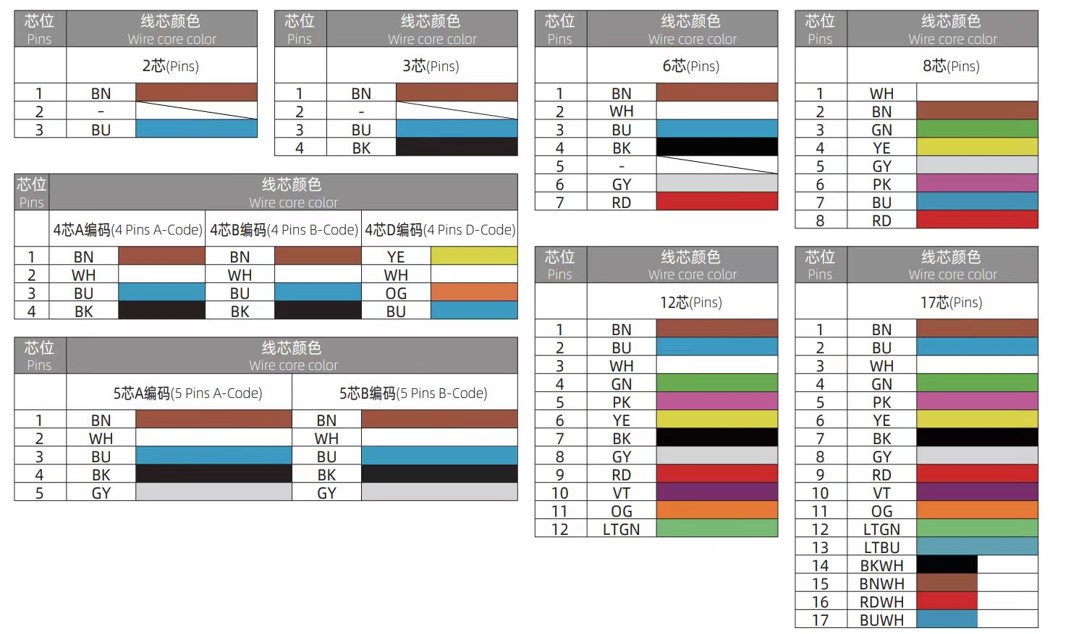

  • M12 circular connector wire definition(Not shielding)

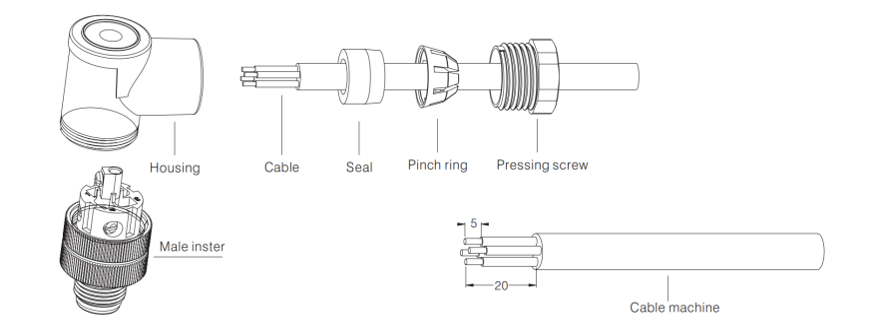

  • M12 assembly instruction

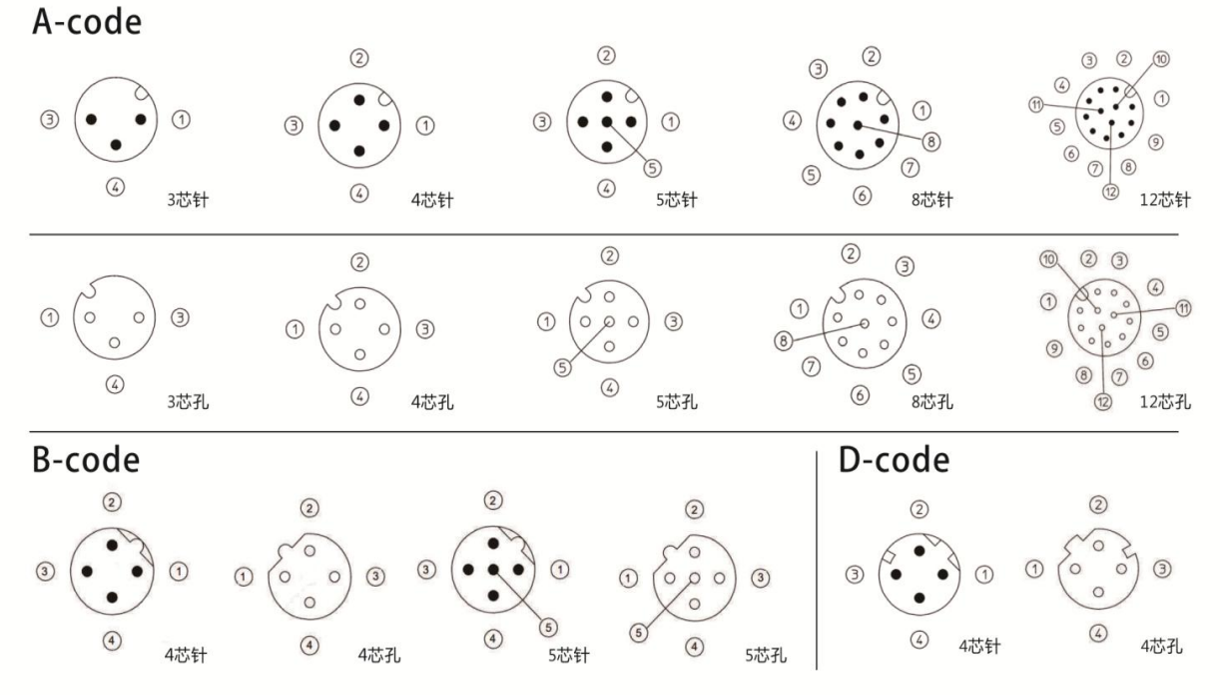

  • M12 field wireable connector pin arrangement
  • M12 male elbow plastic assembly type connector drawing
  • M12 circular connector wire definition(Not shielding)
  • M12 assembly instruction
  • M12 field wireable connector pin arrangement
