M12 female 3 4 5 8 12 17pin elbow molded shielding electrical circular waterproof cable connector manufacturers
| Contacts poles: | 3pin | 4pin | 5pin | 8pin | 12pin | 17pin | ||
| Contact arrangement: |  |
 |
 |
 |
 |
 |
 |
 |
| Coded: | A | A | D | A | B | A | A | A |
| Rated current: | 4A | 4A | 4A | 4A | 4A | 2A | 1.5A | 1.5A |
| Rated voltage: | 250V | 250V | 250V | 250V | 250V | 60V | 30V | 30V |
| Wire gauge: | 22AWG/0.34MM² | 24AWG/0.25MM² | 26AWG/0.14MM² | |||||
| Connector gender: | Female | |||||||
| Contacts termination: | Moulded on the cable | |||||||
| Waterproof protection: | IP67(1m depth water 30 miuntes) | |||||||
| Connector insert: | PA+GF | |||||||

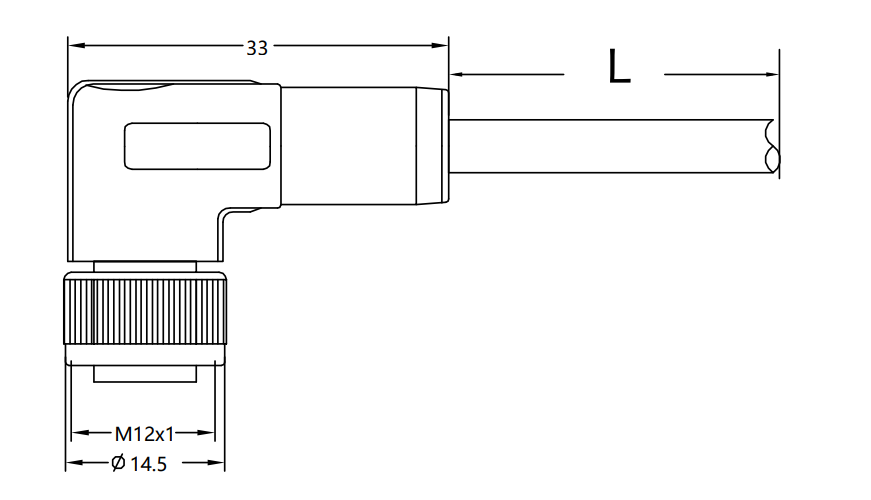

| Orientation: | Right angle 90° | |||||||
| Screw thread: | M12*1.0 | |||||||
| O-ring: | FKM or silicon | |||||||
| Overmolding material: | PVC or TPU | |||||||
| Cable material: | PVC/PUR/halogen-free etc | |||||||
| Cable length: | Customized | |||||||
| UL No. of cable: | UL2464/UL20549 | |||||||
| Cable temperature range: | -25°C~+80°C | |||||||
| Connector locking system: | Screw | |||||||
| Contacts plating: | Brass with gold plated | |||||||
| Shell/Nut/Screw: | Brass with nickel plated | |||||||
| Pollution degree: | III | |||||||
| Insulation resistance: | ≥100MΩ | |||||||
| Contact resistance: | ≤5mΩ | |||||||
| Mechanical operation： | ＞500 times | |||||||
| EMC shielding: | As required | |||||||
| Reference standard: | IEC 61076-2-101 | |||||||
Description:
M12 industrial waterproof connectors are designed for industrial environments,they typically have a high level of protection against moisture, dust and other harsh environmental factors. These connectors are commonly used in applications such as industrial Ethernet, fieldbuses,automation, sensors and actuators to ensure reliability and durability in demanding conditions:
- 14 types: molded type/field wireable type/panel mount type/T&Y adapter
- 12pin, 3 pin, 4 pin, 5 pin, 6 pin, 8 pin,12pin,17pin are available
- 1Female and male are available
- 1A/B/D coding are supported
- 1Straight 180° and right angle 90° are available
- 1Custom cable specification and lengths, molded with PVC or PUR cable
- 1The socket counter part with PCB contacts or Solder type panel mount connectors
- 1Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cables are available
- 1Voltage rating: 30-250V
- 1Current rating:1.5-4A
- 1IP67/IP68 protection degree
- 1Anti-vibration is available
