M12 adapter 3 4 5 6 8 12 17cores male spilt to female and male T type 3 ways circular connector

Brief Information:

  • Model: M12 connector
  • Gender: Female split to male/ female connectors
  • Available numbers of contacts: 3pin 4pin 5pin 6pin 8pin 12pin 17pin
  • Coding: A B D coding
  • Type: T adapter
down load to pdf

M12 T type technical data:

Contacts poles: 3pin 4pin 5pin 8pin 12pin 17pin
Contact arrangement:(male)
Contact arrangement:(female)
Coded: A A D A B A A A
Rated current: 4A 2A 1.5A
Rated voltage: 250V 60V 30V
Wire gauge: 22AWG/0.34MM² 24AWG/0.25MM² 26AWG/0.14MM²
Connector gender: Female split to male/ female connectors
Waterproof protection: IP67(1m depth water 30 miuntes)
Temperature rating: -25°C~+80°C
O-ring: FKM or silicon
Connector insert: PA+GF
Orientation: Straight 180°
Locking type: Screw fixed
Screw thread: M12*1.0
Overmolded material: PVC or TPU
Contacts plating: Brass with gold plated
Shell/Nut/Screw: Brass with nickel plated
Pollution degree: III
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Mechanical operation： ＞500 times
EMC shielding: Accroding to your request
Reference standard: IEC 61076-2-101

Description:

M12 industrial waterproof connectors are designed for industrial environments,they typically have a high level of protection against moisture, dust and other harsh environmental factors. These connectors are commonly used in applications such as industrial Ethernet, fieldbuses,automation, sensors and actuators to ensure reliability and durability in demanding conditions:
  • 14 types: molded type/field wireable type/panel mount type/T&Y adapter
  • 12pin, 3 pin, 4 pin, 5 pin, 6 pin, 8 pin,12pin,17pin are available
  • 1Female and male are available
  • 1A/B/D coding are supported
  • 1Straight 180° and right angle 90° are available
  • 1Custom cable specification and lengths, molded with PVC or PUR cable
  • 1The socket counter part with PCB contacts or Solder type panel mount connectors
  • 1Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cables are available
  • 1Voltage rating: 30-250V
  • 1Current rating:1.5-4A
  • 1IP67/IP68 protection degree
  • 1Anti-vibration is available

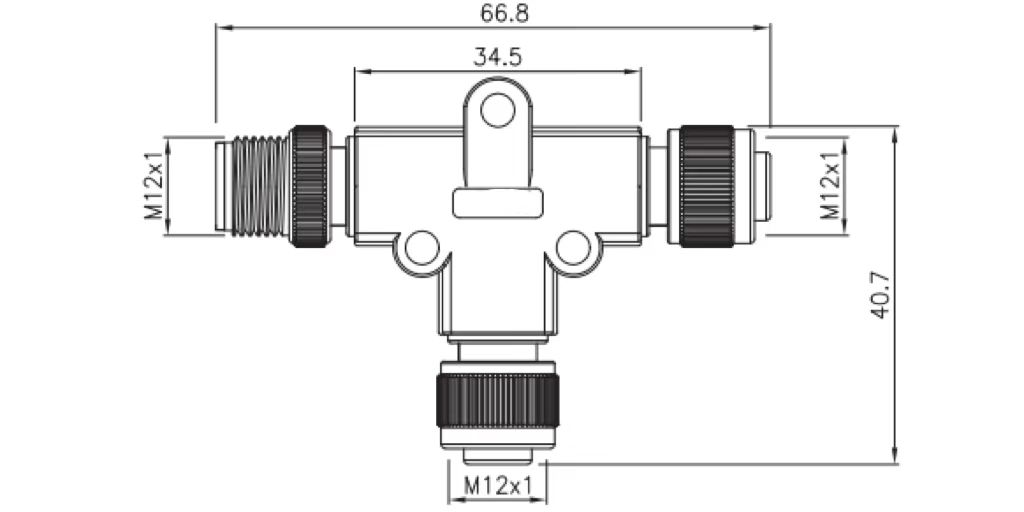

  • M12 T type 3 ways connector brief drawing

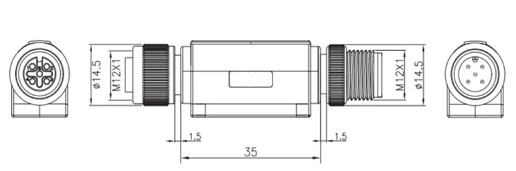

  • M12 I Type Adapter

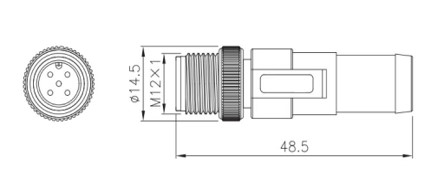

  • M12 male Ohm terminal Plug

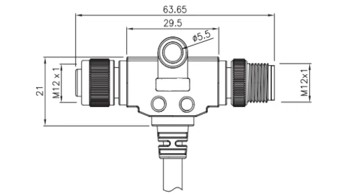

  • M12 T type with cable

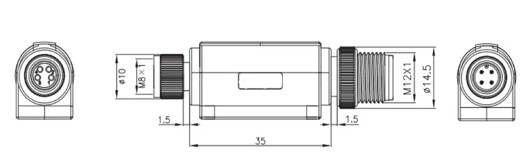

  • M12 to M8 I Type Adapter

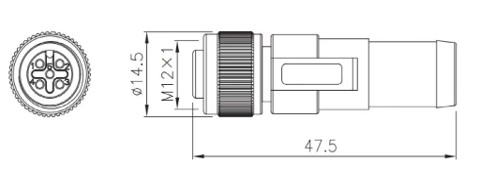

  • M12 female Ohm terminal Plug

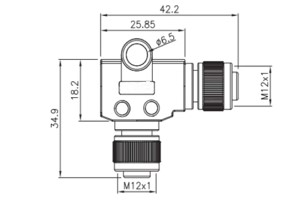

  • M12 L type adapter

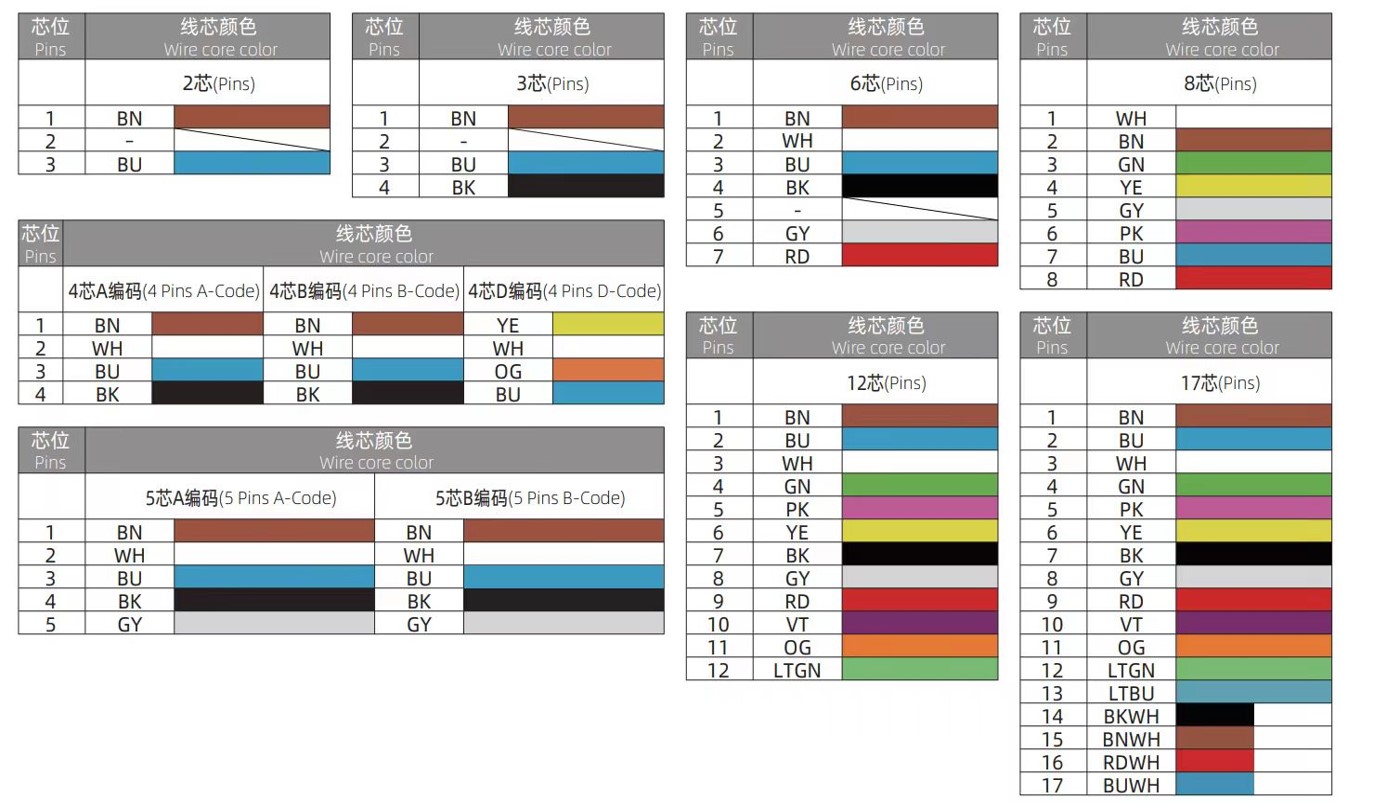

  • M12 circular connector wire definition
  • M12 T type 3 ways connector brief drawing
  • M12 I Type Adapter
  • M12 male Ohm terminal Plug
  • M12 T type with cable
  • M12 to M8 I Type Adapter
  • M12 female Ohm terminal Plug
  • M12 L type adapter
  • M12 circular connector wire definition
