7/8''mini female 3pin 4pin 5pin bulkhead ip68 waterproof solder wire connectors

Brief Information:

  • Model: 7/8''mini connector
  • Gender: Female
  • Available numbers of contacts: 3pin 4pin 5pin 6pin
  • Contacts termination: Soldering/Wires welded
  • Mounting type: Rear fastened
  • Screw thread: PG 13.5
down load to pdf

7/8 socket connector technical data:

Contacts poles: 3pin 4pin 5pin 6pin
Contact arrangement:
Rated current: 13A 9A 9A 9A
Rated voltage: 300V 300V 300V 300V
Wire gauge: 18-20AWG/0.5-1.0mm²
Connector gender: Female
Contacts termination: Soldering/Wires welded
Waterproof protection: IP67(1m depth water 30 miuntes)
O-ring: FKM or silicon
Connector insert: TPU + GF
Flamability: UL94 HB
Orientation: Straight 180°
Screw thread: PG 13.5
Cable temperature range: -25°C~+80°C
Connector locking system: Screw
Contacts plating: Brass with gold plated
Shell/Nut/Screw: Brass with nickel plated
Pollution degree: III
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Mechanical operation： ＞500 times
EMC shielding: Not available
Compliance: RoHs compliant

Description:

7/8 inch threaded locking mechanism connector is one of the most important connectors in factory automation and Fieldbus. The 7/8″ connectors designed for both power supply and signal transmission, widely used in sensors and actuators, electric motors, packaging and transfer system, outdoor LED module. Fremibs company developed and designed the 7/8″ plugs and receptacles under the consideration of different harsh industrial conditions and climatic environments.
  • 13 pin, 4 pin, 5 pin, 6 pin are available
  • 1Female and male are available
  • 1Molded cable type, field installable plugs, panel receptacles and T-Splitter options
  • 1Straight 180° and right angle 90° are available
  • 1Custom cable specification and lengths, molded with PVC or PUR cable
  • 1The socket counter part with PCB contacts or Solder type panel mount connectors
  • 1Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cables are available
  • 1Voltage rating: 300V
  • 1Current rating:13-9A
  • 1IP67 protection degree
More information about 7/8 connectors may you are concerned:
HS Code: 85369010
Customzied: Acceptable
MOQ: 1pcs for normal type
Package: One pcs in PE bag then put all in carton
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days

Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced

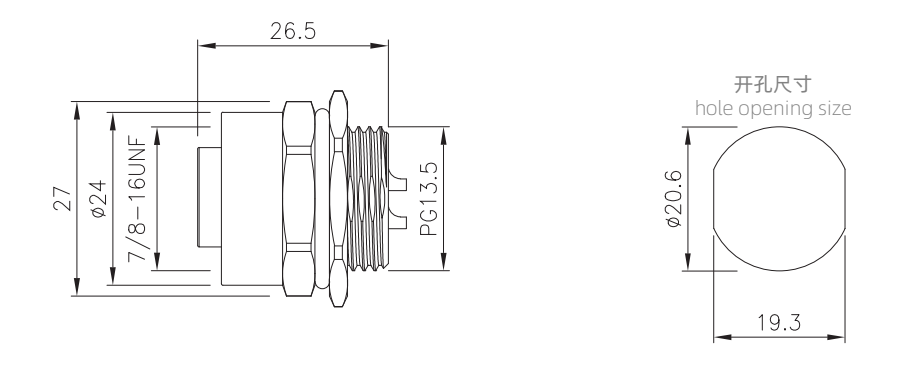

  • 7/8 female panel mount connector drawing

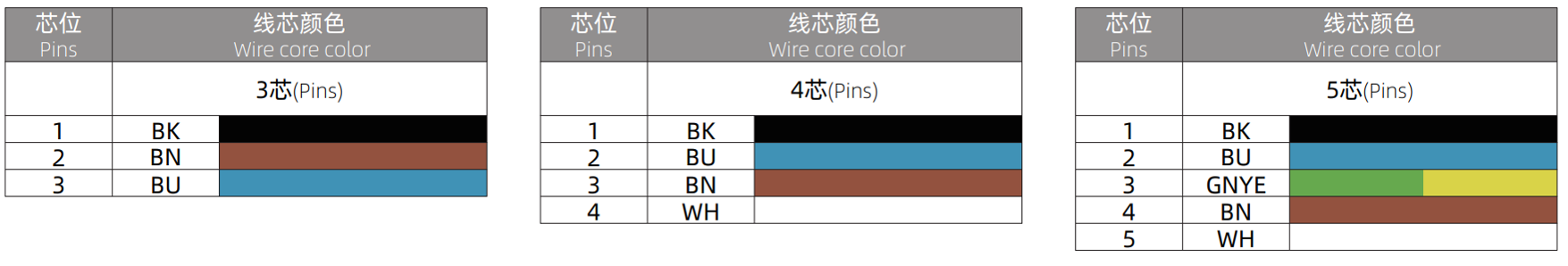

  • 7/8 circular connector wire definition
  • 7/8 female panel mount connector drawing
  • 7/8 circular connector wire definition
